Annoying bug preventing this program to be a joy to use for me

WARNING: You currently have Javascript disabled!
This website will not function correctly without Javascript enabled.

Faixa

21 discussion posts

Keith, I have a big problem with your wonderful program... it started on the version 8 and it's driving me crazy to be honest.

You see, I CAN'T live without Displayfusion, because I have 5 monitors on my computer and I do love my monitors.

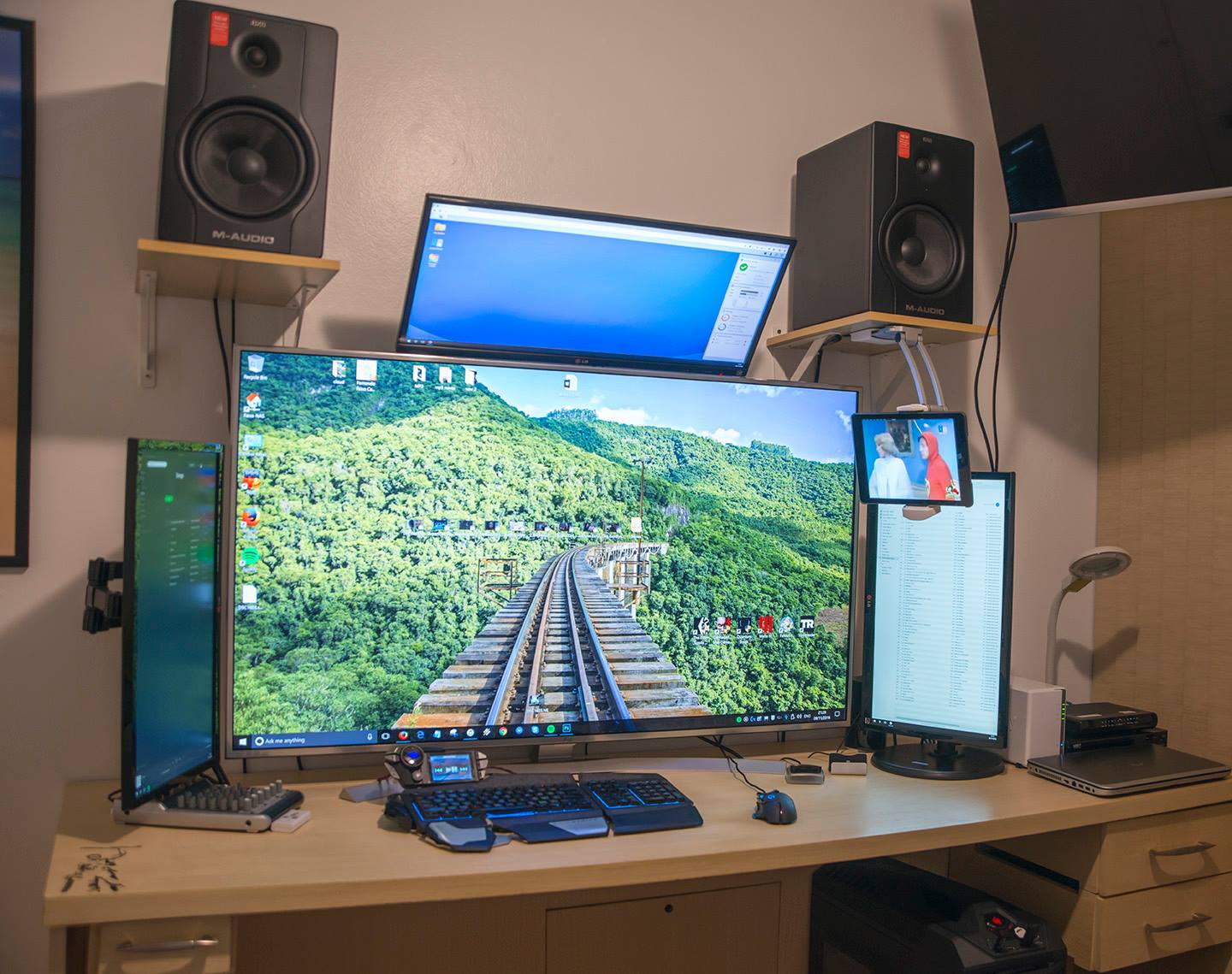

The setup/situation is: I use a 4k display (55 inch on the hdmi - which is display number 2 on my card) and a ultra wide (on the display number 1) Also I think it's a good thing to tell you I am on windows 10 (the latest) and use a 1070 - on the latest drivers as well.

The thing is whenever I press the key combo for the display 6 profile (the tv on the 2, and the ultrawide on 1) the program gives me this:

An error has occurred while applying your new Monitor configuration.
Please check your settings and try again.
Error: Failed to call SetDisplayConfig. [HR: 31]

I press "ok" and press the key combination again and it SOMETIMES works. Other times it just move my display to number 1 and "fuck you user". It still have the nerve to display a message saying the profile changed just to laugh at my face ::)

So I have to restore my settings via import config.

So there you have it. My problem. The ONLY problem.

Can you help ?

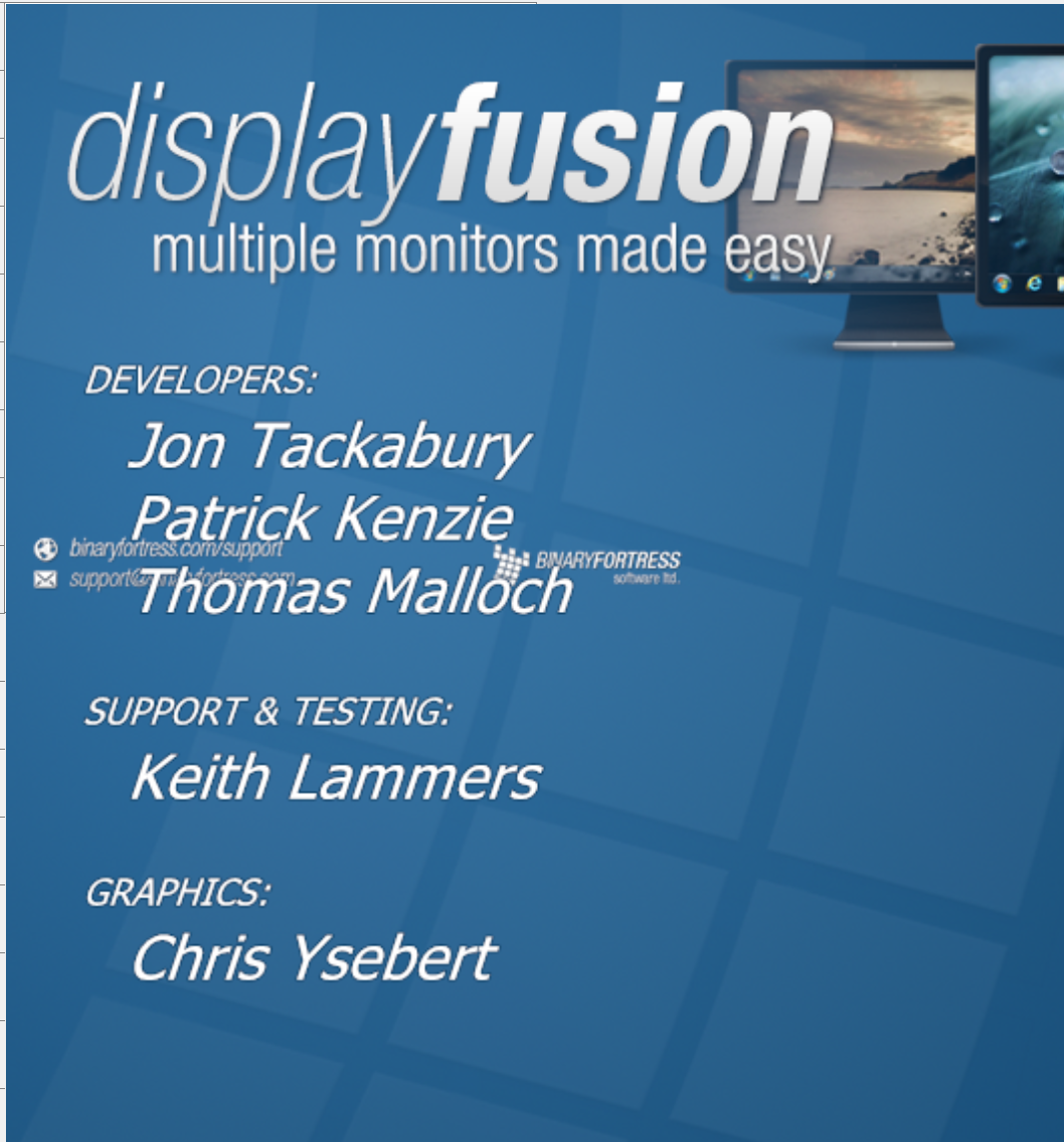

PS: I am attaching a screenshot of something that doesn't bother me one single bit, but I think if I were you, I'd like to fix.

Thanks Keith !

• Attachment: Capture.PNG [1,249,659 bytes]


Jan 21, 2017 (modified Feb 14, 2017) • #1

Glad to hear you like DisplayFusion, thanks for the kind words! That "About" screen issue is on our list to fix up

Regarding the Monitor Profiles, are you switching between having the monitors cloned, and extended?

Jan 23, 2017 • #2

Faixa

21 discussion posts

You guys (or it's just you, i don't know) deserve it man.

I use them all extended. And i just turn off them via the software.

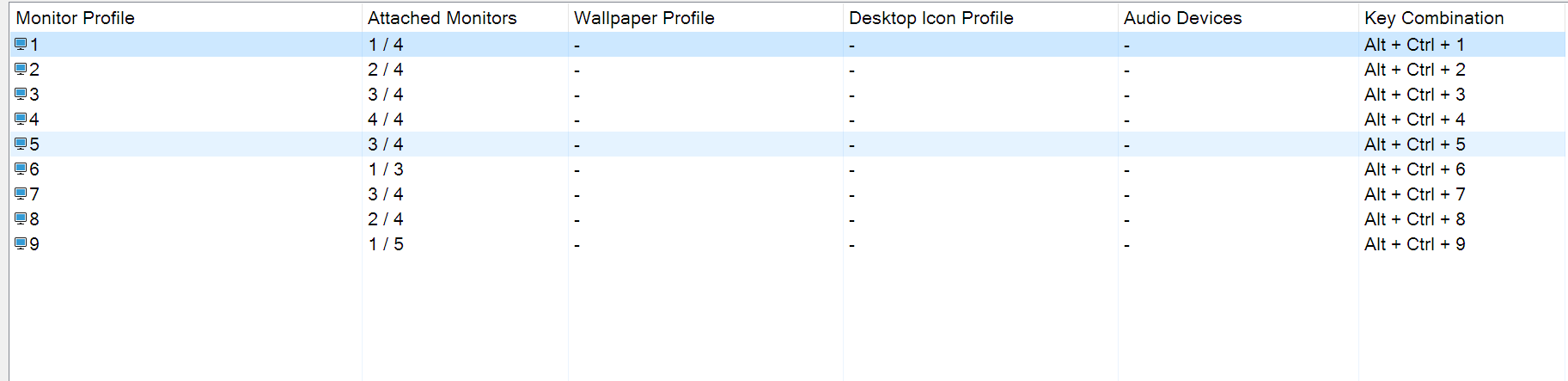

For exemple:
profile 1 - monitor 2
profile 2 - 2 and 3
profile 3 - 2, 3 and 4
profile 6 (the one with problems and the one i use the most) - monitor 2 and 1 (attached a pic) it's the top (monitor 1) and the main screen (monitor 2).

The issue is: the monitor profile keep killing one of the monitors and saving it as 1/3 when there is actually 4 monitors when the bug occurs.

So the profile 6 is displayed only as monitor 1 instead of the monitor 2 (main screen) + 1 (top screen).

• Attachment: 14939952_10154114866233693_2551028374218921364_o.jpg [202,392 bytes]


• Attachment: Capture.PNG [24,845 bytes]


Jan 24, 2017 • #3

Ah, interesting. Couple of follow-up questions:

Does one of your monitors show up as disconnected (most likely a monitor connected by DisplayPort) when it's powered off or in sleep mode?
Does DisplayFusion ever show the "This profile was saved with a different number of monitors" prompt when you try to switch Monitor Profiles?

Jan 24, 2017 • #4

Faixa

21 discussion posts

1 - nope... not that I noticed.

2 - Yes !!!!! and this is what is happening most of the time when I try to make profile 6 work nowadays... Interesting is that profile 7 and 5 - that is the TV, the top monitor and a side monitor - I don't have that problem.

Jan 24, 2017 • #5

Faixa

21 discussion posts

btw, the message I pasted before is incomplete... this happens after that happens.

An error has occurred while applying your new Monitor configuration.
Please check your settings and try again.
Error: CurrentMonitor is NULL [1]: Current: [LG ULTRAWIDE(Display Port) @ NVIDIA GeForce GTX 1070 (ID: 1 • Serial: • Primary: False • Attached: False • Extra: False • Split: False • Split Padding: L=0, R=0, T=0, B=0 • Bounds: X=0, Y=0, W=0, H=0 • WorkArea: X=0, Y=0, W=0, H=0 • RefreshRate: 60hz • ColourDepth: 32 • Clone: {X=0,Y=0,Width=0,Height=0} • Driver: Unknown • Device: • TA:ID: 4356 • TA:AID: 37755:0 • Output: DisplayPortExternal • DPIScaleX: 0 • DPIScaleY: 0 • Orientation: Landscape)] All: Count: 4
- Generic PnP Monitor @ NVIDIA GeForce GTX 1070 (ID: 1 • Serial: • Primary: False • Attached: True • Extra: False • Split: False • Split Padding: L=0, R=0, T=0, B=0 • Bounds: X=2560, Y=0, W=3840, H=2160 • WorkArea: X=2560, Y=0, W=3840, H=2080 • RefreshRate: 60hz • ColourDepth: 32 • Clone: {X=0,Y=0,Width=0,Height=0} • Driver: Unknown • Device: \\.\DISPLAY1 • TA:ID: 0 • TA:AID: 0:0 • Output: Other • DPIScaleX: 0 • DPIScaleY: 0 • Orientation: Landscape)
- LG ULTRAWIDE(Display Port) @ NVIDIA GeForce GTX 1070 (ID: 2 • Serial: • Primary: True • Attached: True • Extra: False • Split: False • Split Padding: L=0, R=0, T=0, B=0 • Bounds: X=0, Y=0, W=2560, H=1080 • WorkArea: X=0, Y=0, W=2560, H=1040 • RefreshRate: 60hz • ColourDepth: 32 • Clone: {X=0,Y=0,Width=0,Height=0} • Driver: Unknown • Device: \\.\DISPLAY2 • TA:ID: 0 • TA:AID: 0:0 • Output: Other • DPIScaleX: 0 • DPIScaleY: 0 • Orientation: Landscape)
- Generic PnP Monitor @ NVIDIA GeForce GTX 1070 (ID: 3 • Serial: • Primary: False • Attached: True • Extra: False • Split: False • Split Padding: L=0, R=0, T=0, B=0 • Bounds: X=6400, Y=0, W=1920, H=1080 • WorkArea: X=6400, Y=0, W=1920, H=1040 • RefreshRate: 60hz • ColourDepth: 32 • Clone: {X=0,Y=0,Width=0,Height=0} • Driver: Unknown • Device: \\.\DISPLAY3 • TA:ID: 0 • TA:AID: 0:0 • Output: Other • DPIScaleX: 0 • DPIScaleY: 0 • Orientation: Landscape)
- Generic PnP Monitor @ NVIDIA GeForce GTX 1070 (ID: 4 • Serial: • Primary: False • Attached: False • Extra: False • Split: False • Split Padding: L=0, R=0, T=0, B=0 • Bounds: X=0, Y=0, W=0, H=0 • WorkArea: X=0, Y=0, W=0, H=0 • RefreshRate: 60hz • ColourDepth: 32 • Clone: {X=0,Y=0,Width=0,Height=0} • Driver: Unknown • Device: \\.\DISPLAY4 • TA:ID: 0 • TA:AID: 0:0 • Output: Other • DPIScaleX: 0 • DPIScaleY: 0 • Orientation: Landscape)

Jan 25, 2017 • #6

Faixa

21 discussion posts

This is getting really bad, every single profile i change gives me the message now. ::)

Jan 31, 2017 • #7

Are your monitors or computer set to go into sleep mode when idle? If so, would you be able to disable sleep for both the monitors and computer, then re-save all of your Monitor Profiles and see if you still run into this issue?

Jan 31, 2017 • #8

Faixa

21 discussion posts

Ok This gives me a MUCH lower fail rate, but I still experienced 1 fail... and as far as I can say it's def. the monitor 1 (and it not being the main one on the displayport in my opinion, well... it may not be it)

But all profiles seem to work now almost flawlessly - had one incident with the old

But what can I do about the sleep monitors ? (that's also something I use a lot, sometimes I need the screen to sleep asap).

Feb 1, 2017 • #9

Ok, so there's definitely something wonky happening when the monitors sleep. The 1 time that it did fail for you, had you recently had one of the monitors powered off?

Feb 1, 2017 • #10

Faixa

21 discussion posts

they are always "on"just on power saving mode (on the monitors)

But I came here to tell you it's happening again even with the monitor's sleep turned off :/

Feb 2, 2017 • #11

Faixa

21 discussion posts

It's no use, the profile 6 still gives the same result... prompts me to save a new monitor profile.

Feb 3, 2017 • #12

Faixa

21 discussion posts

I take it back, it's exactly the same.

Feb 6, 2017 • #13

In the Settings > Advanced Settings window, if you enable the "Monitor Configuration: Don't show 'different number of monitors' prompt" option, does that help at all?

Feb 7, 2017 • #14

Faixa

21 discussion posts

Humm i noticed something.

The main issue happens in the following situation:

i have a 4k tv as the main monitor and another one on the ceiling full hd.

They are both LG so i turn off one and the other turns on - i use that to see series on my bed.
So i turn the system off. When i turn it on again i use the 4k display again instead of the Full hd.

Could this might be causing the problem ?
And if it did, is there a way around it ?

Feb 10, 2017 • #15

Faixa

21 discussion posts

btw it doesn't do anything the thing you suggested.

Feb 10, 2017 • #16

Ok, one more thing to test. If you switch Monitor Profiles using the Load button in the DisplayFusion Monitor Configuration window, instead of the hotkey or tray menu, do you still get this error?

Feb 10, 2017 • #17

Faixa

21 discussion posts

same thing.

Feb 14, 2017 • #18

If you enable the "Monitor Configuration: Use Classic Get/Set Functions" option in the Settings > Advanced Settings window, does that make any difference? I would recommend backing up your settings before trying that out, just in case it makes a mess out of the Monitor Profiles

Feb 15, 2017 • #19

Faixa

21 discussion posts

An error has occurred while applying your new Monitor configuration.
Please check your settings and try again.
Error: Mode Not Supported [-2]
1. LG ULTRAWIDE(Display Port) @ NVIDIA GeForce GTX 1070

This happens... a lot !

Feb 15, 2017 • #20

Would you be able to do the following?

Download this utility: https://www.binaryfortress.com/Files/DisplayFusion/CustomerTest.exe
Save the output from that utility when everything is working fine
Save another copy of the output when the profile is broken
Attach both copies here

Thanks!

Feb 17, 2017 • #21

Faixa

21 discussion posts

WHEN NOT WORKING:

Code
Copy
Select All

BFCustomerTest 2.0
Windows: Win10_Svr2015
Update Mode: Win7
Cloned: False

---------------------------------------------

Monitor #1
VideoCard: NVIDIA GeForce GTX 1070
Monitor: LG ULTRAWIDE(Display Port)
Monitor (Old): LG ULTRAWIDE(Display Port)
Serial:
Source: \\.\DISPLAY1
Attached: True
Primary: True
Extra: False
Bounds: {X=0,Y=0,Width=2560,Height=1080}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: DMDO_DEFAULT
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: DisplayPortExternal
Connector: 1
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0000
PSI ID: 0
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 1
PTI ID: 4356
PTI AID: 36774:0
PTI MIDX: 0
PTI OUT: DisplayPortExternal
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_IDENTITY
PTI RR: 60000 / 1000 (60)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE
PTI TA: True
PTI SF: 1
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 0
MSI AID: 36774:0
MSI SM W: 2560
MSI SM H: 1080
MSI SM POS: 0x0
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: DISPLAYCONFIG_MODE_INFO_TYPE_TARGET
MTI ID: 4356
MTI AID: 36774:0
MTI TM TVSI AS: 2560 x 1080
MTI TM TVSI HSF: 185580000 / 2784 (66.659,48276)
MTI TM TVSI PR: 185580000
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE
MTI TM TVSI TS: 2784 x 1111
MTI TM TVSI VS: 255
MTI TM TVSI VSF: 60000 / 1000 (60)
MTI TM TVSI VSFD: 0
Preferred Mode: 2560x1080 @ 60hzhz [MT TVSI AS: 2560 x 1080, MT TVSI HSF: 185580000 / 2784 (66.659,48276), MT TVSI PR: 185580000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 2784 x 1111, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
Monitor 1 Name: \\.\DISPLAY1\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM0001\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 2 Name: \\.\DISPLAY1\Monitor1
Monitor 2 String: LG ULTRAWIDE(Display Port)
Monitor 2 RegID: MONITOR\GSM59F2\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 2 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 2 Flags: DISPLAY_DEVICE_ATTACHED_TO_DESKTOP, DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath: \\?\DISPLAY#GSM59F2#5&3a071889&5&UID4356#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: 640x480@59hz, 640x480@60hz, 640x480@75hz, 720x480@59hz, 720x480@60hz, 720x576@50hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1176x664@50hz, 1176x664@50hz, 1176x664@50hz, 1176x664@59hz, 1176x664@59hz, 1176x664@59hz, 1176x664@60hz, 1176x664@60hz, 1176x664@60hz, 1280x720@50hz, 1280x720@59hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@75hz, 1280x768@75hz, 1280x768@75hz, 1280x800@60hz, 1280x800@60hz, 1280x800@60hz, 1280x800@75hz, 1280x800@75hz, 1280x800@75hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@60hz, 1400x1050@60hz, 1400x1050@60hz, 1440x900@60hz, 1440x900@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1768x992@50hz, 1768x992@50hz, 1768x992@50hz, 1768x992@59hz, 1768x992@59hz, 1768x992@59hz, 1768x992@60hz, 1768x992@60hz, 1768x992@60hz, 1920x1080@50hz, 1920x1080@59hz, 1920x1080@60hz, 2560x1080@60hz
---------------------------------------------

Monitor #2
VideoCard: NVIDIA GeForce GTX 1070
Monitor: LG TV
Monitor (Old): LG TV
Serial:
Source:
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: HDMI
Connector: 0
Adapter RegID:
Adapter RegKey:
PSI ID: 0
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 1
PTI ID: 4353
PTI AID: 36774:0
PTI MIDX: 4294967295
PTI OUT: HDMI
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_PREFERRED
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: True
PTI SF: 0
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 0
MSI AID: 36774:0
MSI SM W: 2560
MSI SM H: 1080
MSI SM POS: 0x0
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: 3840x2160 @ 60hzhz [MT TVSI AS: 3840 x 2160, MT TVSI HSF: 594000000 / 4400 (135.000), MT TVSI PR: 594000000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 4400 x 2250, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
W7 Monitor DevPath: \\?\DISPLAY#GSM0001#5&3a071889&5&UID4353#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: NULL
---------------------------------------------

Monitor #3
VideoCard: NVIDIA GeForce GTX 1070
Monitor: 23EA53
Monitor (Old): 23EA53
Serial:
Source:
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: HDMI
Connector: 1
Adapter RegID:
Adapter RegKey:
PSI ID: 0
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 1
PTI ID: 4355
PTI AID: 36774:0
PTI MIDX: 4294967295
PTI OUT: HDMI
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_PREFERRED
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: True
PTI SF: 0
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 0
MSI AID: 36774:0
MSI SM W: 2560
MSI SM H: 1080
MSI SM POS: 0x0
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: 1920x1080 @ 60hzhz [MT TVSI AS: 1920 x 1080, MT TVSI HSF: 148500000 / 2200 (67.500), MT TVSI PR: 148500000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 2200 x 1125, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
W7 Monitor DevPath: \\?\DISPLAY#GSM59A9#5&3a071889&5&UID4355#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: NULL
---------------------------------------------

Monitor #4
VideoCard: NVIDIA GeForce GTX 1070
Monitor: 23EA53
Monitor (Old): 23EA53
Serial:
Source:
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: DVI
Connector: 0
Adapter RegID:
Adapter RegKey:
PSI ID: 0
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 1
PTI ID: 4352
PTI AID: 36774:0
PTI MIDX: 4294967295
PTI OUT: DVI
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_PREFERRED
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: True
PTI SF: 0
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 0
MSI AID: 36774:0
MSI SM W: 2560
MSI SM H: 1080
MSI SM POS: 0x0
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: 1920x1080 @ 60hzhz [MT TVSI AS: 1920 x 1080, MT TVSI HSF: 148500000 / 2200 (67.500), MT TVSI PR: 148500000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 2200 x 1125, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
W7 Monitor DevPath: \\?\DISPLAY#GSM59A8#5&3a071889&5&UID4352#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: NULL
---------------------------------------------

Update Mode: Classic
Cloned: False

---------------------------------------------

Monitor #1
VideoCard: NVIDIA GeForce GTX 1070
Monitor: LG ULTRAWIDE(Display Port)
Monitor (Old): LG ULTRAWIDE(Display Port)
Serial:
Source: \\.\DISPLAY1
Attached: True
Primary: True
Extra: False
Bounds: {X=0,Y=0,Width=2560,Height=1080}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: DMDO_DEFAULT
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0000
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY1\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM0001\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 2 Name: \\.\DISPLAY1\Monitor1
Monitor 2 String: LG ULTRAWIDE(Display Port)
Monitor 2 RegID: MONITOR\GSM59F2\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 2 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 2 Flags: DISPLAY_DEVICE_ATTACHED_TO_DESKTOP, DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@59hz, 640x480@60hz, 640x480@75hz, 720x480@59hz, 720x480@60hz, 720x576@50hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1176x664@50hz, 1176x664@50hz, 1176x664@50hz, 1176x664@59hz, 1176x664@59hz, 1176x664@59hz, 1176x664@60hz, 1176x664@60hz, 1176x664@60hz, 1280x720@50hz, 1280x720@59hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@75hz, 1280x768@75hz, 1280x768@75hz, 1280x800@60hz, 1280x800@60hz, 1280x800@60hz, 1280x800@75hz, 1280x800@75hz, 1280x800@75hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@60hz, 1400x1050@60hz, 1400x1050@60hz, 1440x900@60hz, 1440x900@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1768x992@50hz, 1768x992@50hz, 1768x992@50hz, 1768x992@59hz, 1768x992@59hz, 1768x992@59hz, 1768x992@60hz, 1768x992@60hz, 1768x992@60hz, 1920x1080@50hz, 1920x1080@59hz, 1920x1080@60hz, 2560x1080@60hz
---------------------------------------------

Monitor #2
VideoCard: NVIDIA GeForce GTX 1070
Monitor: Generic PnP Monitor
Monitor (Old): Generic PnP Monitor
Serial:
Source: \\.\DISPLAY2
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0001
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY2\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM59A8\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 2 Name: \\.\DISPLAY2\Monitor1
Monitor 2 String: Generic PnP Monitor
Monitor 2 RegID: MONITOR\GSM0001\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 2 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 2 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 3 Name: \\.\DISPLAY2\Monitor2
Monitor 3 String: Generic PnP Monitor
Monitor 3 RegID: MONITOR\GSM59A9\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 3 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 3 Flags: DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@60hz, 640x480@75hz, 720x480@56hz, 720x480@56hz, 720x480@56hz, 720x480@60hz, 720x480@60hz, 720x480@60hz, 720x480@75hz, 720x480@75hz, 720x480@75hz, 720x576@56hz, 720x576@56hz, 720x576@56hz, 720x576@60hz, 720x576@60hz, 720x576@60hz, 720x576@75hz, 720x576@75hz, 720x576@75hz, 800x600@56hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x800@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1920x1080@60hz
---------------------------------------------

Monitor #3
VideoCard: NVIDIA GeForce GTX 1070
Monitor: Generic PnP Monitor
Monitor (Old): Generic PnP Monitor
Serial:
Source: \\.\DISPLAY3
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0002
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY3\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM59A8\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 2 Name: \\.\DISPLAY3\Monitor1
Monitor 2 String: Generic PnP Monitor
Monitor 2 RegID: MONITOR\GSM0001\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 2 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 2 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 3 Name: \\.\DISPLAY3\Monitor2
Monitor 3 String: Generic PnP Monitor
Monitor 3 RegID: MONITOR\GSM59A9\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 3 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 3 Flags: DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@60hz, 640x480@75hz, 720x480@56hz, 720x480@56hz, 720x480@56hz, 720x480@60hz, 720x480@60hz, 720x480@60hz, 720x480@75hz, 720x480@75hz, 720x480@75hz, 720x576@56hz, 720x576@56hz, 720x576@56hz, 720x576@60hz, 720x576@60hz, 720x576@60hz, 720x576@75hz, 720x576@75hz, 720x576@75hz, 800x600@56hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x800@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1920x1080@60hz
---------------------------------------------

Monitor #4
VideoCard: NVIDIA GeForce GTX 1070
Monitor: Generic PnP Monitor
Monitor (Old): Generic PnP Monitor
Serial:
Source: \\.\DISPLAY4
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0003
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY4\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM59A8\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 2 Name: \\.\DISPLAY4\Monitor1
Monitor 2 String: Generic PnP Monitor
Monitor 2 RegID: MONITOR\GSM0001\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 2 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 2 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 3 Name: \\.\DISPLAY4\Monitor2
Monitor 3 String: Generic PnP Monitor
Monitor 3 RegID: MONITOR\GSM59A9\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 3 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 3 Flags: DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@60hz, 640x480@75hz, 720x480@56hz, 720x480@56hz, 720x480@56hz, 720x480@60hz, 720x480@60hz, 720x480@60hz, 720x480@75hz, 720x480@75hz, 720x480@75hz, 720x576@56hz, 720x576@56hz, 720x576@56hz, 720x576@60hz, 720x576@60hz, 720x576@60hz, 720x576@75hz, 720x576@75hz, 720x576@75hz, 800x600@56hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x800@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1920x1080@60hz
---------------------------------------------

2017/02/21 00:22:13.380##_##INFO:L1##_##customertest.exe:4928##_##BFMetrics:TimerEnabled:Set##_##GUIThread:Main##_##Metrics Disabled: Timer is Disposed.##_##-
2017/02/21 00:22:13.388##_##INFO:L1##_##customertest.exe:4928##_##BFAppUserModelID:SetCurrentProcessAppID##_##GUIThread:Main##_##AppID: BinaryFortressSoftware.BFCustomerTest.Main##_##-
2017/02/21 00:22:13.391##_##INFO:L1##_##customertest.exe:4928##_##BFPublicData:CTR##_##GUIThread:Main##_##AppID: BinaryFortressSoftware.BFCustomerTest.Main##_##-
2017/02/21 00:22:13.407##_##INFO:L1##_##customertest.exe:4928##_##BFThreadManager:CTR##_##GUIThread:Main##_##Starting...##_##-
2017/02/21 00:22:13.408##_##INFO:L1##_##customertest.exe:4928##_##BFProcessHelpers:CTR##_##GUIThread:Main##_##Starting...##_##-
2017/02/21 00:22:13.418##_##INFO:L1##_##customertest.exe:4928##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: False, Split: False, Constructor##_##-
2017/02/21 00:22:13.487##_##INFO:L1##_##customertest.exe:4928##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: True, Split: False, Constructor##_##-
2017/02/21 00:22:13.494##_##INFO:L1##_##customertest.exe:4928##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: True, Split: True, Constructor##_##-
2017/02/21 00:22:13.504##_##INFO:L1##_##customertest.exe:4928##_##BFUpdateCheck:CTR##_##GUIThread:Main##_##Setup##_##-
2017/02/21 00:22:13.525##_##WARN:L1##_##customertest.exe:4928##_##BFAdvancedSettingManager:SetupAdvancedSettings##_##GUIThread:Main##_##MethodSetupAdvancedSettings is NULL.##_##-
2017/02/21 00:22:13.534##_##INFO:L1##_##customertest.exe:4928##_##BFFontScale:CTR##_##GUIThread:Main##_##Set: 2x2[BFPublicData]##_##-
2017/02/21 00:22:13.534##_##WARN:L1##_##customertest.exe:4928##_##BFPublicData:CTR##_##GUIThread:Main##_##COM already setup.##_##-
2017/02/21 00:22:13.542##_##FAIL:L1##_##customertest.exe:4928##_##BFRegistry:ReadValueWORKER##_##GUIThread:Main##_##Hive: "HKEY_CURRENT_USER" • Path: "Software\Binary Fortress Software\BFCustomerTest" • ValueName: "VersionSettings" • Failed to open SubKey.##_##-
2017/02/21 00:22:13.542##_##FAIL:L1##_##customertest.exe:4928##_##BFPublicData:AutoExportIfNeeded##_##GUIThread:Main##_##Skip Export: VersionSettings is NULL.##_##-
2017/02/21 00:22:13.565##_##INFO:L1##_##customertest.exe:4928##_##BFLog:RunTHREAD##_##Logging-1##_##Starting##_##-
2017/02/21 00:22:13.584##_##INFO:L1##_##customertest.exe:4928##_##BFFormBase:Main:SetWindowIconTitle##_##GUIThread:Main##_##Setting Title: BFCustomerTest 2.0##_##-
2017/02/21 00:22:13.584##_##INFO:L1##_##customertest.exe:4928##_##BFFormBase:Main:SetWindowIconTitle##_##GUIThread:Main##_##Setting Icon: BFCustomerTest 2.0##_##-
2017/02/21 00:22:13.589##_##FAIL:L1##_##customertest.exe:4928##_##BFFormBase:Main:OnHandleCreated##_##GUIThread:Main##_##SetupFormCalled was NOT called.##_##-
2017/02/21 00:22:13.598##_##FAIL:L1##_##customertest.exe:4928##_##BFFormBase:Main:OnLoad##_##GUIThread:Main##_##ScaleAllControls never called.##_##-
2017/02/21 00:22:13.608##_##INFO:L1##_##customertest.exe:4928##_##BFFormBase:Main:RestoreWindowPosition##_##GUIThread:Main##_##Name: Main • Using Defaults ~ Location: {X=854,Y=200} • Size: {Width=851, Height=640} • State: Normal##_##-
2017/02/21 00:22:13.609##_##INFO:L1##_##customertest.exe:4928##_##BFFormBase:Main:RestoreWindowPosition##_##GUIThread:Main##_##Name: Main • Location: {X=854,Y=200} • Size: {Width=851, Height=640} • State: Normal##_##-
2017/02/21 00:22:13.618##_##INFO:L1##_##customertest.exe:4928##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: False, Split: False, Constructor##_##-
2017/02/21 00:22:13.751##_##FAIL:L1##_##customertest.exe:4928##_##BFMonitorHelpers:GetMonitorDisplayModes##_##GUIThread:Main##_##DeviceName is NULL.##_##-
2017/02/21 00:22:13.756##_##FAIL:L1##_##customertest.exe:4928##_##BFMonitorHelpers:GetMonitorDisplayModes##_##GUIThread:Main##_##DeviceName is NULL.##_##-
2017/02/21 00:22:13.763##_##FAIL:L1##_##customertest.exe:4928##_##BFMonitorHelpers:GetMonitorDisplayModes##_##GUIThread:Main##_##DeviceName is NULL.##_##-
2017/02/21 00:22:13.770##_##INFO:L1##_##customertest.exe:4928##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: False, Split: False, Constructor##_##-
2017/02/21 00:22:13.805##_##FAIL:L1##_##customertest.exe:4928##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-
2017/02/21 00:22:13.820##_##FAIL:L1##_##customertest.exe:4928##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-
2017/02/21 00:22:13.870##_##FAIL:L1##_##customertest.exe:4928##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-
2017/02/21 00:22:13.921##_##FAIL:L1##_##customertest.exe:4928##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-

Feb 21, 2017 (modified Mar 1, 2017) • #22

Faixa

21 discussion posts

WHEN WORKING:

Code
Copy
Select All

BFCustomerTest 2.0
Windows: Win10_Svr2015
Update Mode: Win7
Cloned: False

---------------------------------------------

Monitor #1
VideoCard: NVIDIA GeForce GTX 1070
Monitor: LG ULTRAWIDE(Display Port)
Monitor (Old): LG ULTRAWIDE(Display Port)
Serial:
Source: \\.\DISPLAY2
Attached: True
Primary: False
Extra: False
Bounds: {X=605,Y=-1080,Width=2560,Height=1080}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: DMDO_DEFAULT
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: DisplayPortExternal
Connector: 1
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0001
PSI ID: 1
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 3
PTI ID: 4356
PTI AID: 36774:0
PTI MIDX: 2
PTI OUT: DisplayPortExternal
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_IDENTITY
PTI RR: 60000 / 1000 (60)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE
PTI TA: True
PTI SF: 1
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 1
MSI AID: 36774:0
MSI SM W: 2560
MSI SM H: 1080
MSI SM POS: 605x-1080
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: DISPLAYCONFIG_MODE_INFO_TYPE_TARGET
MTI ID: 4356
MTI AID: 36774:0
MTI TM TVSI AS: 2560 x 1080
MTI TM TVSI HSF: 185580000 / 2784 (66.659,48276)
MTI TM TVSI PR: 185580000
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE
MTI TM TVSI TS: 2784 x 1111
MTI TM TVSI VS: 255
MTI TM TVSI VSF: 60000 / 1000 (60)
MTI TM TVSI VSFD: 0
Preferred Mode: 2560x1080 @ 60hzhz [MT TVSI AS: 2560 x 1080, MT TVSI HSF: 185580000 / 2784 (66.659,48276), MT TVSI PR: 185580000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 2784 x 1111, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
Monitor 1 Name: \\.\DISPLAY2\Monitor0
Monitor 1 String: LG ULTRAWIDE(Display Port)
Monitor 1 RegID: MONITOR\GSM59F2\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 1 Flags: DISPLAY_DEVICE_ATTACHED_TO_DESKTOP, DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath: \\?\DISPLAY#GSM59F2#5&3a071889&5&UID4356#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: 640x480@59hz, 640x480@60hz, 640x480@75hz, 720x480@59hz, 720x480@60hz, 720x576@50hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1176x664@50hz, 1176x664@50hz, 1176x664@50hz, 1176x664@59hz, 1176x664@59hz, 1176x664@59hz, 1176x664@60hz, 1176x664@60hz, 1176x664@60hz, 1280x720@50hz, 1280x720@59hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@75hz, 1280x768@75hz, 1280x768@75hz, 1280x800@60hz, 1280x800@60hz, 1280x800@60hz, 1280x800@75hz, 1280x800@75hz, 1280x800@75hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@60hz, 1400x1050@60hz, 1400x1050@60hz, 1440x900@60hz, 1440x900@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1768x992@50hz, 1768x992@50hz, 1768x992@50hz, 1768x992@59hz, 1768x992@59hz, 1768x992@59hz, 1768x992@60hz, 1768x992@60hz, 1768x992@60hz, 1920x1080@50hz, 1920x1080@59hz, 1920x1080@60hz, 2560x1080@60hz
---------------------------------------------

Monitor #2
VideoCard: NVIDIA GeForce GTX 1070
Monitor: LG TV
Monitor (Old): LG TV
Serial:
Source: \\.\DISPLAY1
Attached: True
Primary: True
Extra: False
Bounds: {X=0,Y=0,Width=3840,Height=2160}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: DMDO_DEFAULT
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: HDMI
Connector: 0
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0000
PSI ID: 0
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 1
PTI ID: 4353
PTI AID: 36774:0
PTI MIDX: 0
PTI OUT: HDMI
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_IDENTITY
PTI RR: 60000 / 1000 (60)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE
PTI TA: True
PTI SF: 1
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 0
MSI AID: 36774:0
MSI SM W: 3840
MSI SM H: 2160
MSI SM POS: 0x0
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: DISPLAYCONFIG_MODE_INFO_TYPE_TARGET
MTI ID: 4353
MTI AID: 36774:0
MTI TM TVSI AS: 3840 x 2160
MTI TM TVSI HSF: 594000000 / 4400 (135.000)
MTI TM TVSI PR: 594000000
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE
MTI TM TVSI TS: 4400 x 2250
MTI TM TVSI VS: 255
MTI TM TVSI VSF: 60000 / 1000 (60)
MTI TM TVSI VSFD: 0
Preferred Mode: 3840x2160 @ 60hzhz [MT TVSI AS: 3840 x 2160, MT TVSI HSF: 594000000 / 4400 (135.000), MT TVSI PR: 594000000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 4400 x 2250, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
Monitor 1 Name: \\.\DISPLAY1\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM0001\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 Flags: DISPLAY_DEVICE_ATTACHED_TO_DESKTOP, DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath: \\?\DISPLAY#GSM0001#5&3a071889&5&UID4353#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: 640x480@59hz, 640x480@60hz, 720x480@59hz, 720x480@60hz, 720x576@50hz, 800x600@60hz, 1024x768@60hz, 1152x864@60hz, 1176x664@50hz, 1176x664@50hz, 1176x664@50hz, 1176x664@59hz, 1176x664@59hz, 1176x664@59hz, 1176x664@60hz, 1176x664@60hz, 1176x664@60hz, 1280x720@50hz, 1280x720@59hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x800@60hz, 1280x800@60hz, 1280x800@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x1024@60hz, 1360x768@60hz, 1366x768@23hz, 1366x768@23hz, 1366x768@23hz, 1366x768@24hz, 1366x768@24hz, 1366x768@24hz, 1366x768@25hz (i), 1366x768@25hz, 1366x768@25hz (i), 1366x768@25hz, 1366x768@25hz (i), 1366x768@25hz, 1366x768@29hz, 1366x768@29hz (i), 1366x768@29hz (i), 1366x768@29hz, 1366x768@29hz, 1366x768@29hz (i), 1366x768@30hz, 1366x768@30hz, 1366x768@30hz, 1366x768@30hz (i), 1366x768@30hz (i), 1366x768@30hz (i), 1366x768@50hz, 1366x768@50hz, 1366x768@50hz, 1366x768@59hz, 1366x768@59hz, 1366x768@59hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@23hz, 1400x1050@23hz, 1400x1050@23hz, 1400x1050@24hz, 1400x1050@24hz, 1400x1050@24hz, 1400x1050@25hz (i), 1400x1050@25hz (i), 1400x1050@25hz (i), 1400x1050@25hz, 1400x1050@25hz, 1400x1050@25hz, 1400x1050@29hz, 1400x1050@29hz, 1400x1050@29hz, 1400x1050@29hz (i), 1400x1050@29hz (i), 1400x1050@29hz (i), 1400x1050@30hz (i), 1400x1050@30hz, 1400x1050@30hz, 1400x1050@30hz (i), 1400x1050@30hz, 1400x1050@30hz (i), 1400x1050@50hz, 1400x1050@50hz, 1400x1050@50hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@60hz, 1400x1050@60hz, 1400x1050@60hz, 1440x900@23hz, 1440x900@23hz, 1440x900@23hz, 1440x900@24hz, 1440x900@24hz, 1440x900@24hz, 1440x900@25hz (i), 1440x900@25hz (i), 1440x900@25hz, 1440x900@25hz, 1440x900@25hz, 1440x900@25hz (i), 1440x900@29hz (i), 1440x900@29hz, 1440x900@29hz (i), 1440x900@29hz, 1440x900@29hz (i), 1440x900@29hz, 1440x900@30hz (i), 1440x900@30hz (i), 1440x900@30hz, 1440x900@30hz, 1440x900@30hz (i), 1440x900@30hz, 1440x900@50hz, 1440x900@50hz, 1440x900@50hz, 1440x900@59hz, 1440x900@59hz, 1440x900@59hz, 1440x900@60hz, 1440x900@60hz, 1440x900@60hz, 1600x900@23hz, 1600x900@23hz, 1600x900@23hz, 1600x900@24hz, 1600x900@24hz, 1600x900@24hz, 1600x900@25hz (i), 1600x900@25hz, 1600x900@25hz, 1600x900@25hz, 1600x900@25hz (i), 1600x900@25hz (i), 1600x900@29hz, 1600x900@29hz (i), 1600x900@29hz (i), 1600x900@29hz, 1600x900@29hz (i), 1600x900@29hz, 1600x900@30hz, 1600x900@30hz (i), 1600x900@30hz (i), 1600x900@30hz (i), 1600x900@30hz, 1600x900@30hz, 1600x900@50hz, 1600x900@50hz, 1600x900@50hz, 1600x900@59hz, 1600x900@59hz, 1600x900@59hz, 1600x900@60hz, 1600x900@60hz, 1600x900@60hz, 1600x1024@23hz, 1600x1024@23hz, 1600x1024@23hz, 1600x1024@24hz, 1600x1024@24hz, 1600x1024@24hz, 1600x1024@25hz, 1600x1024@25hz (i), 1600x1024@25hz, 1600x1024@25hz (i), 1600x1024@25hz (i), 1600x1024@25hz, 1600x1024@29hz (i), 1600x1024@29hz, 1600x1024@29hz (i), 1600x1024@29hz (i), 1600x1024@29hz, 1600x1024@29hz, 1600x1024@30hz, 1600x1024@30hz (i), 1600x1024@30hz (i), 1600x1024@30hz, 1600x1024@30hz (i), 1600x1024@30hz, 1600x1024@50hz, 1600x1024@50hz, 1600x1024@50hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1200@23hz, 1600x1200@23hz, 1600x1200@23hz, 1600x1200@24hz, 1600x1200@24hz, 1600x1200@24hz, 1600x1200@25hz, 1600x1200@25hz, 1600x1200@25hz, 1600x1200@29hz, 1600x1200@29hz, 1600x1200@29hz, 1600x1200@30hz, 1600x1200@30hz, 1600x1200@30hz, 1600x1200@50hz, 1600x1200@50hz, 1600x1200@50hz, 1600x1200@59hz, 1600x1200@59hz, 1600x1200@59hz, 1600x1200@60hz, 1600x1200@60hz, 1600x1200@60hz, 1680x1050@23hz, 1680x1050@23hz, 1680x1050@23hz, 1680x1050@24hz, 1680x1050@24hz, 1680x1050@24hz, 1680x1050@25hz, 1680x1050@25hz, 1680x1050@25hz (i), 1680x1050@25hz (i), 1680x1050@25hz, 1680x1050@25hz (i), 1680x1050@29hz (i), 1680x1050@29hz, 1680x1050@29hz (i), 1680x1050@29hz (i), 1680x1050@29hz, 1680x1050@29hz, 1680x1050@30hz (i), 1680x1050@30hz (i), 1680x1050@30hz, 1680x1050@30hz, 1680x1050@30hz, 1680x1050@30hz (i), 1680x1050@50hz, 1680x1050@50hz, 1680x1050@50hz, 1680x1050@59hz, 1680x1050@59hz, 1680x1050@59hz, 1680x1050@60hz, 1680x1050@60hz, 1680x1050@60hz, 1768x992@25hz (i), 1768x992@25hz (i), 1768x992@25hz (i), 1768x992@29hz (i), 1768x992@29hz (i), 1768x992@29hz (i), 1768x992@30hz (i), 1768x992@30hz (i), 1768x992@30hz (i), 1920x1080@23hz, 1920x1080@24hz, 1920x1080@25hz (i), 1920x1080@25hz, 1920x1080@29hz, 1920x1080@29hz (i), 1920x1080@30hz (i), 1920x1080@30hz, 1920x1080@50hz, 1920x1080@59hz, 1920x1080@60hz, 1920x1200@23hz, 1920x1200@23hz, 1920x1200@23hz, 1920x1200@24hz, 1920x1200@24hz, 1920x1200@24hz, 1920x1200@25hz, 1920x1200@25hz, 1920x1200@25hz, 1920x1200@29hz, 1920x1200@29hz, 1920x1200@29hz, 1920x1200@30hz, 1920x1200@30hz, 1920x1200@30hz, 1920x1200@50hz, 1920x1200@50hz, 1920x1200@50hz, 1920x1200@59hz, 1920x1200@59hz, 1920x1200@59hz, 1920x1200@60hz, 1920x1200@60hz, 1920x1200@60hz, 1920x1440@23hz, 1920x1440@23hz, 1920x1440@23hz, 1920x1440@24hz, 1920x1440@24hz, 1920x1440@24hz, 1920x1440@25hz, 1920x1440@25hz, 1920x1440@25hz, 1920x1440@29hz, 1920x1440@29hz, 1920x1440@29hz, 1920x1440@30hz, 1920x1440@30hz, 1920x1440@30hz, 1920x1440@50hz, 1920x1440@50hz, 1920x1440@50hz, 1920x1440@59hz, 1920x1440@59hz, 1920x1440@59hz, 1920x1440@60hz, 1920x1440@60hz, 1920x1440@60hz, 2048x1536@23hz, 2048x1536@23hz, 2048x1536@23hz, 2048x1536@24hz, 2048x1536@24hz, 2048x1536@24hz, 2048x1536@25hz, 2048x1536@25hz, 2048x1536@25hz, 2048x1536@29hz, 2048x1536@29hz, 2048x1536@29hz, 2048x1536@30hz, 2048x1536@30hz, 2048x1536@30hz, 2048x1536@50hz, 2048x1536@50hz, 2048x1536@50hz, 2048x1536@59hz, 2048x1536@59hz, 2048x1536@59hz, 2048x1536@60hz, 2048x1536@60hz, 2048x1536@60hz, 2560x1080@23hz, 2560x1080@23hz, 2560x1080@23hz, 2560x1080@24hz, 2560x1080@24hz, 2560x1080@24hz, 2560x1080@25hz, 2560x1080@25hz, 2560x1080@25hz, 2560x1080@29hz, 2560x1080@29hz, 2560x1080@29hz, 2560x1080@30hz, 2560x1080@30hz, 2560x1080@30hz, 2560x1080@50hz, 2560x1080@50hz, 2560x1080@50hz, 2560x1080@59hz, 2560x1080@59hz, 2560x1080@59hz, 2560x1080@60hz, 2560x1080@60hz, 2560x1080@60hz, 2560x1440@23hz, 2560x1440@23hz, 2560x1440@23hz, 2560x1440@24hz, 2560x1440@24hz, 2560x1440@24hz, 2560x1440@25hz, 2560x1440@25hz, 2560x1440@25hz, 2560x1440@29hz, 2560x1440@29hz, 2560x1440@29hz, 2560x1440@30hz, 2560x1440@30hz, 2560x1440@30hz, 2560x1440@50hz, 2560x1440@50hz, 2560x1440@50hz, 2560x1440@59hz, 2560x1440@59hz, 2560x1440@59hz, 2560x1440@60hz, 2560x1440@60hz, 2560x1440@60hz, 2560x1600@23hz, 2560x1600@23hz, 2560x1600@23hz, 2560x1600@24hz, 2560x1600@24hz, 2560x1600@24hz, 2560x1600@25hz, 2560x1600@25hz, 2560x1600@25hz, 2560x1600@29hz, 2560x1600@29hz, 2560x1600@29hz, 2560x1600@30hz, 2560x1600@30hz, 2560x1600@30hz, 2560x1600@50hz, 2560x1600@50hz, 2560x1600@50hz, 2560x1600@59hz, 2560x1600@59hz, 2560x1600@59hz, 2560x1600@60hz, 2560x1600@60hz, 2560x1600@60hz, 3840x2160@23hz, 3840x2160@24hz, 3840x2160@25hz, 3840x2160@29hz, 3840x2160@30hz, 3840x2160@50hz, 3840x2160@59hz, 3840x2160@60hz, 4096x2160@23hz, 4096x2160@24hz, 4096x2160@25hz, 4096x2160@29hz, 4096x2160@30hz, 4096x2160@50hz, 4096x2160@59hz, 4096x2160@60hz
---------------------------------------------

Monitor #3
VideoCard: NVIDIA GeForce GTX 1070
Monitor: 23EA53
Monitor (Old): 23EA53
Serial:
Source:
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: HDMI
Connector: 1
Adapter RegID:
Adapter RegKey:
PSI ID: 0
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 1
PTI ID: 4355
PTI AID: 36774:0
PTI MIDX: 4294967295
PTI OUT: HDMI
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_PREFERRED
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: True
PTI SF: 0
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 0
MSI AID: 36774:0
MSI SM W: 3840
MSI SM H: 2160
MSI SM POS: 0x0
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: 1920x1080 @ 60hzhz [MT TVSI AS: 1920 x 1080, MT TVSI HSF: 148500000 / 2200 (67.500), MT TVSI PR: 148500000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 2200 x 1125, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
W7 Monitor DevPath: \\?\DISPLAY#GSM59A9#5&3a071889&5&UID4355#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: NULL
---------------------------------------------

Monitor #4
VideoCard: NVIDIA GeForce GTX 1070
Monitor: 23EA53
Monitor (Old): 23EA53
Serial:
Source:
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_IDENTITY
OutputTech: DVI
Connector: 0
Adapter RegID:
Adapter RegKey:
PSI ID: 0
PSI SF: 1
PSI AID: 36774:0
PSI MIDX: 1
PTI ID: 4352
PTI AID: 36774:0
PTI MIDX: 4294967295
PTI OUT: DVI
PTI ROT: DISPLAYCONFIG_ROTATION_IDENTITY
PTI SCA: DISPLAYCONFIG_SCALING_PREFERRED
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: True
PTI SF: 0
MSI IT: DISPLAYCONFIG_MODE_INFO_TYPE_SOURCE
MSI ID: 0
MSI AID: 36774:0
MSI SM W: 3840
MSI SM H: 2160
MSI SM POS: 0x0
MSI SM PIX: DISPLAYCONFIG_PIXELFORMAT_32BPP
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: 1920x1080 @ 60hzhz [MT TVSI AS: 1920 x 1080, MT TVSI HSF: 148500000 / 2200 (67.500), MT TVSI PR: 148500000, MT TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_PROGRESSIVE, MT TVSI TS: 2200 x 1125, MT TVSI VS: 255, MT TVSI VSF: 60000 / 1000 (60), MT TVSI VSFD: 0]
W7 Monitor DevPath: \\?\DISPLAY#GSM59A8#5&3a071889&5&UID4352#{e6f07b5f-ee97-4a90-b076-33f57bf4eaa7}
W7 Video DevPath: \\?\PCI#VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1#4&3834d97&0&0008#{5b45201d-f2f2-4f3b-85bb-30ff1f953599}
Modes: NULL
---------------------------------------------

Update Mode: Classic
Cloned: False

---------------------------------------------

Monitor #1
VideoCard: NVIDIA GeForce GTX 1070
Monitor: Generic PnP Monitor
Monitor (Old): Generic PnP Monitor
Serial:
Source: \\.\DISPLAY1
Attached: True
Primary: True
Extra: False
Bounds: {X=0,Y=0,Width=3840,Height=2160}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: DMDO_DEFAULT
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0000
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY1\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM0001\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0007
Monitor 1 Flags: DISPLAY_DEVICE_ATTACHED_TO_DESKTOP, DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@59hz, 640x480@60hz, 720x480@59hz, 720x480@60hz, 720x576@50hz, 800x600@60hz, 1024x768@60hz, 1152x864@60hz, 1176x664@50hz, 1176x664@50hz, 1176x664@50hz, 1176x664@59hz, 1176x664@59hz, 1176x664@59hz, 1176x664@60hz, 1176x664@60hz, 1176x664@60hz, 1280x720@50hz, 1280x720@59hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x800@60hz, 1280x800@60hz, 1280x800@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x1024@60hz, 1360x768@60hz, 1366x768@23hz, 1366x768@23hz, 1366x768@23hz, 1366x768@24hz, 1366x768@24hz, 1366x768@24hz, 1366x768@25hz (i), 1366x768@25hz, 1366x768@25hz (i), 1366x768@25hz, 1366x768@25hz (i), 1366x768@25hz, 1366x768@29hz, 1366x768@29hz (i), 1366x768@29hz (i), 1366x768@29hz, 1366x768@29hz, 1366x768@29hz (i), 1366x768@30hz, 1366x768@30hz, 1366x768@30hz, 1366x768@30hz (i), 1366x768@30hz (i), 1366x768@30hz (i), 1366x768@50hz, 1366x768@50hz, 1366x768@50hz, 1366x768@59hz, 1366x768@59hz, 1366x768@59hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@23hz, 1400x1050@23hz, 1400x1050@23hz, 1400x1050@24hz, 1400x1050@24hz, 1400x1050@24hz, 1400x1050@25hz (i), 1400x1050@25hz (i), 1400x1050@25hz (i), 1400x1050@25hz, 1400x1050@25hz, 1400x1050@25hz, 1400x1050@29hz, 1400x1050@29hz, 1400x1050@29hz, 1400x1050@29hz (i), 1400x1050@29hz (i), 1400x1050@29hz (i), 1400x1050@30hz (i), 1400x1050@30hz, 1400x1050@30hz, 1400x1050@30hz (i), 1400x1050@30hz, 1400x1050@30hz (i), 1400x1050@50hz, 1400x1050@50hz, 1400x1050@50hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@60hz, 1400x1050@60hz, 1400x1050@60hz, 1440x900@23hz, 1440x900@23hz, 1440x900@23hz, 1440x900@24hz, 1440x900@24hz, 1440x900@24hz, 1440x900@25hz (i), 1440x900@25hz (i), 1440x900@25hz, 1440x900@25hz, 1440x900@25hz, 1440x900@25hz (i), 1440x900@29hz (i), 1440x900@29hz, 1440x900@29hz (i), 1440x900@29hz, 1440x900@29hz (i), 1440x900@29hz, 1440x900@30hz (i), 1440x900@30hz (i), 1440x900@30hz, 1440x900@30hz, 1440x900@30hz (i), 1440x900@30hz, 1440x900@50hz, 1440x900@50hz, 1440x900@50hz, 1440x900@59hz, 1440x900@59hz, 1440x900@59hz, 1440x900@60hz, 1440x900@60hz, 1440x900@60hz, 1600x900@23hz, 1600x900@23hz, 1600x900@23hz, 1600x900@24hz, 1600x900@24hz, 1600x900@24hz, 1600x900@25hz (i), 1600x900@25hz, 1600x900@25hz, 1600x900@25hz, 1600x900@25hz (i), 1600x900@25hz (i), 1600x900@29hz, 1600x900@29hz (i), 1600x900@29hz (i), 1600x900@29hz, 1600x900@29hz (i), 1600x900@29hz, 1600x900@30hz, 1600x900@30hz (i), 1600x900@30hz (i), 1600x900@30hz (i), 1600x900@30hz, 1600x900@30hz, 1600x900@50hz, 1600x900@50hz, 1600x900@50hz, 1600x900@59hz, 1600x900@59hz, 1600x900@59hz, 1600x900@60hz, 1600x900@60hz, 1600x900@60hz, 1600x1024@23hz, 1600x1024@23hz, 1600x1024@23hz, 1600x1024@24hz, 1600x1024@24hz, 1600x1024@24hz, 1600x1024@25hz, 1600x1024@25hz (i), 1600x1024@25hz, 1600x1024@25hz (i), 1600x1024@25hz (i), 1600x1024@25hz, 1600x1024@29hz (i), 1600x1024@29hz, 1600x1024@29hz (i), 1600x1024@29hz (i), 1600x1024@29hz, 1600x1024@29hz, 1600x1024@30hz, 1600x1024@30hz (i), 1600x1024@30hz (i), 1600x1024@30hz, 1600x1024@30hz (i), 1600x1024@30hz, 1600x1024@50hz, 1600x1024@50hz, 1600x1024@50hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1200@23hz, 1600x1200@23hz, 1600x1200@23hz, 1600x1200@24hz, 1600x1200@24hz, 1600x1200@24hz, 1600x1200@25hz, 1600x1200@25hz, 1600x1200@25hz, 1600x1200@29hz, 1600x1200@29hz, 1600x1200@29hz, 1600x1200@30hz, 1600x1200@30hz, 1600x1200@30hz, 1600x1200@50hz, 1600x1200@50hz, 1600x1200@50hz, 1600x1200@59hz, 1600x1200@59hz, 1600x1200@59hz, 1600x1200@60hz, 1600x1200@60hz, 1600x1200@60hz, 1680x1050@23hz, 1680x1050@23hz, 1680x1050@23hz, 1680x1050@24hz, 1680x1050@24hz, 1680x1050@24hz, 1680x1050@25hz, 1680x1050@25hz, 1680x1050@25hz (i), 1680x1050@25hz (i), 1680x1050@25hz, 1680x1050@25hz (i), 1680x1050@29hz (i), 1680x1050@29hz, 1680x1050@29hz (i), 1680x1050@29hz (i), 1680x1050@29hz, 1680x1050@29hz, 1680x1050@30hz (i), 1680x1050@30hz (i), 1680x1050@30hz, 1680x1050@30hz, 1680x1050@30hz, 1680x1050@30hz (i), 1680x1050@50hz, 1680x1050@50hz, 1680x1050@50hz, 1680x1050@59hz, 1680x1050@59hz, 1680x1050@59hz, 1680x1050@60hz, 1680x1050@60hz, 1680x1050@60hz, 1768x992@25hz (i), 1768x992@25hz (i), 1768x992@25hz (i), 1768x992@29hz (i), 1768x992@29hz (i), 1768x992@29hz (i), 1768x992@30hz (i), 1768x992@30hz (i), 1768x992@30hz (i), 1920x1080@23hz, 1920x1080@24hz, 1920x1080@25hz (i), 1920x1080@25hz, 1920x1080@29hz, 1920x1080@29hz (i), 1920x1080@30hz (i), 1920x1080@30hz, 1920x1080@50hz, 1920x1080@59hz, 1920x1080@60hz, 1920x1200@23hz, 1920x1200@23hz, 1920x1200@23hz, 1920x1200@24hz, 1920x1200@24hz, 1920x1200@24hz, 1920x1200@25hz, 1920x1200@25hz, 1920x1200@25hz, 1920x1200@29hz, 1920x1200@29hz, 1920x1200@29hz, 1920x1200@30hz, 1920x1200@30hz, 1920x1200@30hz, 1920x1200@50hz, 1920x1200@50hz, 1920x1200@50hz, 1920x1200@59hz, 1920x1200@59hz, 1920x1200@59hz, 1920x1200@60hz, 1920x1200@60hz, 1920x1200@60hz, 1920x1440@23hz, 1920x1440@23hz, 1920x1440@23hz, 1920x1440@24hz, 1920x1440@24hz, 1920x1440@24hz, 1920x1440@25hz, 1920x1440@25hz, 1920x1440@25hz, 1920x1440@29hz, 1920x1440@29hz, 1920x1440@29hz, 1920x1440@30hz, 1920x1440@30hz, 1920x1440@30hz, 1920x1440@50hz, 1920x1440@50hz, 1920x1440@50hz, 1920x1440@59hz, 1920x1440@59hz, 1920x1440@59hz, 1920x1440@60hz, 1920x1440@60hz, 1920x1440@60hz, 2048x1536@23hz, 2048x1536@23hz, 2048x1536@23hz, 2048x1536@24hz, 2048x1536@24hz, 2048x1536@24hz, 2048x1536@25hz, 2048x1536@25hz, 2048x1536@25hz, 2048x1536@29hz, 2048x1536@29hz, 2048x1536@29hz, 2048x1536@30hz, 2048x1536@30hz, 2048x1536@30hz, 2048x1536@50hz, 2048x1536@50hz, 2048x1536@50hz, 2048x1536@59hz, 2048x1536@59hz, 2048x1536@59hz, 2048x1536@60hz, 2048x1536@60hz, 2048x1536@60hz, 2560x1080@23hz, 2560x1080@23hz, 2560x1080@23hz, 2560x1080@24hz, 2560x1080@24hz, 2560x1080@24hz, 2560x1080@25hz, 2560x1080@25hz, 2560x1080@25hz, 2560x1080@29hz, 2560x1080@29hz, 2560x1080@29hz, 2560x1080@30hz, 2560x1080@30hz, 2560x1080@30hz, 2560x1080@50hz, 2560x1080@50hz, 2560x1080@50hz, 2560x1080@59hz, 2560x1080@59hz, 2560x1080@59hz, 2560x1080@60hz, 2560x1080@60hz, 2560x1080@60hz, 2560x1440@23hz, 2560x1440@23hz, 2560x1440@23hz, 2560x1440@24hz, 2560x1440@24hz, 2560x1440@24hz, 2560x1440@25hz, 2560x1440@25hz, 2560x1440@25hz, 2560x1440@29hz, 2560x1440@29hz, 2560x1440@29hz, 2560x1440@30hz, 2560x1440@30hz, 2560x1440@30hz, 2560x1440@50hz, 2560x1440@50hz, 2560x1440@50hz, 2560x1440@59hz, 2560x1440@59hz, 2560x1440@59hz, 2560x1440@60hz, 2560x1440@60hz, 2560x1440@60hz, 2560x1600@23hz, 2560x1600@23hz, 2560x1600@23hz, 2560x1600@24hz, 2560x1600@24hz, 2560x1600@24hz, 2560x1600@25hz, 2560x1600@25hz, 2560x1600@25hz, 2560x1600@29hz, 2560x1600@29hz, 2560x1600@29hz, 2560x1600@30hz, 2560x1600@30hz, 2560x1600@30hz, 2560x1600@50hz, 2560x1600@50hz, 2560x1600@50hz, 2560x1600@59hz, 2560x1600@59hz, 2560x1600@59hz, 2560x1600@60hz, 2560x1600@60hz, 2560x1600@60hz, 3840x2160@23hz, 3840x2160@24hz, 3840x2160@25hz, 3840x2160@29hz, 3840x2160@30hz, 3840x2160@50hz, 3840x2160@59hz, 3840x2160@60hz, 4096x2160@23hz, 4096x2160@24hz, 4096x2160@25hz, 4096x2160@29hz, 4096x2160@30hz, 4096x2160@50hz, 4096x2160@59hz, 4096x2160@60hz
---------------------------------------------

Monitor #2
VideoCard: NVIDIA GeForce GTX 1070
Monitor: LG ULTRAWIDE(Display Port)
Monitor (Old): LG ULTRAWIDE(Display Port)
Serial:
Source: \\.\DISPLAY2
Attached: True
Primary: False
Extra: False
Bounds: {X=605,Y=-1080,Width=2560,Height=1080}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: DMDO_DEFAULT
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0001
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY2\Monitor0
Monitor 1 String: LG ULTRAWIDE(Display Port)
Monitor 1 RegID: MONITOR\GSM59F2\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0009
Monitor 1 Flags: DISPLAY_DEVICE_ATTACHED_TO_DESKTOP, DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@59hz, 640x480@60hz, 640x480@75hz, 720x480@59hz, 720x480@60hz, 720x576@50hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1176x664@50hz, 1176x664@50hz, 1176x664@50hz, 1176x664@59hz, 1176x664@59hz, 1176x664@59hz, 1176x664@60hz, 1176x664@60hz, 1176x664@60hz, 1280x720@50hz, 1280x720@59hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@75hz, 1280x768@75hz, 1280x768@75hz, 1280x800@60hz, 1280x800@60hz, 1280x800@60hz, 1280x800@75hz, 1280x800@75hz, 1280x800@75hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@59hz, 1400x1050@60hz, 1400x1050@60hz, 1400x1050@60hz, 1440x900@60hz, 1440x900@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1768x992@50hz, 1768x992@50hz, 1768x992@50hz, 1768x992@59hz, 1768x992@59hz, 1768x992@59hz, 1768x992@60hz, 1768x992@60hz, 1768x992@60hz, 1920x1080@50hz, 1920x1080@59hz, 1920x1080@60hz, 2560x1080@60hz
---------------------------------------------

Monitor #3
VideoCard: NVIDIA GeForce GTX 1070
Monitor: Generic PnP Monitor
Monitor (Old): Generic PnP Monitor
Serial:
Source: \\.\DISPLAY3
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0002
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY3\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM59A8\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 2 Name: \\.\DISPLAY3\Monitor1
Monitor 2 String: Generic PnP Monitor
Monitor 2 RegID: MONITOR\GSM59A9\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 2 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 2 Flags: DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@60hz, 640x480@75hz, 720x480@56hz, 720x480@56hz, 720x480@56hz, 720x480@60hz, 720x480@60hz, 720x480@60hz, 720x480@75hz, 720x480@75hz, 720x480@75hz, 720x576@56hz, 720x576@56hz, 720x576@56hz, 720x576@60hz, 720x576@60hz, 720x576@60hz, 720x576@75hz, 720x576@75hz, 720x576@75hz, 800x600@56hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x800@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1920x1080@60hz
---------------------------------------------

Monitor #4
VideoCard: NVIDIA GeForce GTX 1070
Monitor: Generic PnP Monitor
Monitor (Old): Generic PnP Monitor
Serial:
Source: \\.\DISPLAY4
Attached: False
Primary: False
Extra: False
Bounds: {X=0,Y=0,Width=0,Height=0}
Colour: 32
Refresh: 60hz
Orientation: Landscape
OrientationRawClassic: CUSTOM_NOVALUE
OrientationRawWin7: DISPLAYCONFIG_ROTATION_FORCE_UINT32
OutputTech: Other
Connector: 9999
Adapter RegID: PCI\VEN_10DE&DEV_1B81&SUBSYS_37011458&REV_A1
Adapter RegKey: \Registry\Machine\System\CurrentControlSet\Control\Video\{3014CBB5-7B5C-41C8-BBF9-6ADE9B41DD69}\0003
PSI ID: 0
PSI SF: 0
PSI AID: 0:0
PSI MIDX: 0
PTI ID: 0
PTI AID: 0:0
PTI MIDX: 0
PTI OUT: VGA
PTI ROT: 0
PTI SCA: 0
PTI RR: 0 / 0 (0)
PTI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
PTI TA: False
PTI SF: 0
MSI IT: 0
MSI ID: 0
MSI AID: 0:0
MSI SM W: 0
MSI SM H: 0
MSI SM POS: 0x0
MSI SM PIX: 0
MTI IT: 0
MTI ID: 0
MTI AID: 0:0
MTI TM TVSI AS: 0 x 0
MTI TM TVSI HSF: 0 / 0 (0)
MTI TM TVSI PR: 0
MTI TM TVSI SLO: DISPLAYCONFIG_SCANLINE_ORDERING_UNSPECIFIED
MTI TM TVSI TS: 0 x 0
MTI TM TVSI VS: 0
MTI TM TVSI VSF: 0 / 0 (0)
MTI TM TVSI VSFD: 0
Preferred Mode: NULL
Monitor 1 Name: \\.\DISPLAY4\Monitor0
Monitor 1 String: Generic PnP Monitor
Monitor 1 RegID: MONITOR\GSM59A8\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0000
Monitor 1 Flags: DISPLAY_DEVICE_MULTI_DRIVER
Monitor 2 Name: \\.\DISPLAY4\Monitor1
Monitor 2 String: Generic PnP Monitor
Monitor 2 RegID: MONITOR\GSM59A9\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 2 RegKey: \Registry\Machine\System\CurrentControlSet\Control\Class\{4d36e96e-e325-11ce-bfc1-08002be10318}\0008
Monitor 2 Flags: DISPLAY_DEVICE_MULTI_DRIVER
W7 Monitor DevPath:
W7 Video DevPath:
Modes: 640x480@60hz, 640x480@75hz, 720x480@56hz, 720x480@56hz, 720x480@56hz, 720x480@60hz, 720x480@60hz, 720x480@60hz, 720x480@75hz, 720x480@75hz, 720x480@75hz, 720x576@56hz, 720x576@56hz, 720x576@56hz, 720x576@60hz, 720x576@60hz, 720x576@60hz, 720x576@75hz, 720x576@75hz, 720x576@75hz, 800x600@56hz, 800x600@60hz, 800x600@75hz, 1024x768@60hz, 1024x768@75hz, 1152x864@75hz, 1280x720@60hz, 1280x768@60hz, 1280x768@60hz, 1280x768@60hz, 1280x800@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@60hz, 1280x960@75hz, 1280x960@75hz, 1280x960@75hz, 1280x1024@60hz, 1280x1024@75hz, 1360x768@60hz, 1360x768@60hz, 1360x768@60hz, 1366x768@60hz, 1366x768@60hz, 1366x768@60hz, 1400x1050@60hz, 1440x900@60hz, 1600x900@60hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@59hz, 1600x1024@60hz, 1600x1024@60hz, 1600x1024@60hz, 1680x1050@59hz, 1680x1050@60hz, 1920x1080@60hz
---------------------------------------------

2017/02/21 00:23:36.960##_##INFO:L1##_##customertest.exe:8168##_##BFMetrics:TimerEnabled:Set##_##GUIThread:Main##_##Metrics Disabled: Timer is Disposed.##_##-
2017/02/21 00:23:36.969##_##INFO:L1##_##customertest.exe:8168##_##BFAppUserModelID:SetCurrentProcessAppID##_##GUIThread:Main##_##AppID: BinaryFortressSoftware.BFCustomerTest.Main##_##-
2017/02/21 00:23:36.971##_##INFO:L1##_##customertest.exe:8168##_##BFPublicData:CTR##_##GUIThread:Main##_##AppID: BinaryFortressSoftware.BFCustomerTest.Main##_##-
2017/02/21 00:23:36.988##_##INFO:L1##_##customertest.exe:8168##_##BFThreadManager:CTR##_##GUIThread:Main##_##Starting...##_##-
2017/02/21 00:23:36.990##_##INFO:L1##_##customertest.exe:8168##_##BFProcessHelpers:CTR##_##GUIThread:Main##_##Starting...##_##-
2017/02/21 00:23:37.000##_##INFO:L1##_##customertest.exe:8168##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: False, Split: False, Constructor##_##-
2017/02/21 00:23:37.081##_##INFO:L1##_##customertest.exe:8168##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: True, Split: False, Constructor##_##-
2017/02/21 00:23:37.098##_##INFO:L1##_##customertest.exe:8168##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: True, Split: True, Constructor##_##-
2017/02/21 00:23:37.117##_##INFO:L1##_##customertest.exe:8168##_##BFUpdateCheck:CTR##_##GUIThread:Main##_##Setup##_##-
2017/02/21 00:23:37.138##_##WARN:L1##_##customertest.exe:8168##_##BFAdvancedSettingManager:SetupAdvancedSettings##_##GUIThread:Main##_##MethodSetupAdvancedSettings is NULL.##_##-
2017/02/21 00:23:37.147##_##INFO:L1##_##customertest.exe:8168##_##BFFontScale:CTR##_##GUIThread:Main##_##Set: 2x2[BFPublicData]##_##-
2017/02/21 00:23:37.147##_##WARN:L1##_##customertest.exe:8168##_##BFPublicData:CTR##_##GUIThread:Main##_##COM already setup.##_##-
2017/02/21 00:23:37.154##_##FAIL:L1##_##customertest.exe:8168##_##BFRegistry:ReadValueWORKER##_##GUIThread:Main##_##Hive: "HKEY_CURRENT_USER" • Path: "Software\Binary Fortress Software\BFCustomerTest" • ValueName: "VersionSettings" • Failed to open SubKey.##_##-
2017/02/21 00:23:37.155##_##FAIL:L1##_##customertest.exe:8168##_##BFPublicData:AutoExportIfNeeded##_##GUIThread:Main##_##Skip Export: VersionSettings is NULL.##_##-
2017/02/21 00:23:37.179##_##INFO:L1##_##customertest.exe:8168##_##BFLog:RunTHREAD##_##Logging-1##_##Starting##_##-
2017/02/21 00:23:37.198##_##INFO:L1##_##customertest.exe:8168##_##BFFormBase:Main:SetWindowIconTitle##_##GUIThread:Main##_##Setting Title: BFCustomerTest 2.0##_##-
2017/02/21 00:23:37.198##_##INFO:L1##_##customertest.exe:8168##_##BFFormBase:Main:SetWindowIconTitle##_##GUIThread:Main##_##Setting Icon: BFCustomerTest 2.0##_##-
2017/02/21 00:23:37.204##_##FAIL:L1##_##customertest.exe:8168##_##BFFormBase:Main:OnHandleCreated##_##GUIThread:Main##_##SetupFormCalled was NOT called.##_##-
2017/02/21 00:23:37.213##_##FAIL:L1##_##customertest.exe:8168##_##BFFormBase:Main:OnLoad##_##GUIThread:Main##_##ScaleAllControls never called.##_##-
2017/02/21 00:23:37.223##_##INFO:L1##_##customertest.exe:8168##_##BFFormBase:Main:RestoreWindowPosition##_##GUIThread:Main##_##Name: Main • Using Defaults ~ Location: {X=1494,Y=720} • Size: {Width=851, Height=640} • State: Normal##_##-
2017/02/21 00:23:37.223##_##INFO:L1##_##customertest.exe:8168##_##BFFormBase:Main:RestoreWindowPosition##_##GUIThread:Main##_##Name: Main • Location: {X=1494,Y=720} • Size: {Width=851, Height=640} • State: Normal##_##-
2017/02/21 00:23:37.259##_##INFO:L1##_##customertest.exe:8168##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: False, Split: False, Constructor##_##-
2017/02/21 00:23:37.991##_##FAIL:L1##_##customertest.exe:8168##_##BFMonitorHelpers:GetMonitorDisplayModes##_##GUIThread:Main##_##DeviceName is NULL.##_##-
2017/02/21 00:23:38.006##_##FAIL:L1##_##customertest.exe:8168##_##BFMonitorHelpers:GetMonitorDisplayModes##_##GUIThread:Main##_##DeviceName is NULL.##_##-
2017/02/21 00:23:38.016##_##INFO:L1##_##customertest.exe:8168##_##BFMonitorEnum:UpdateMonitors##_##GUIThread:Main##_##Updating Monitors, Attached: False, Split: False, Constructor##_##-
2017/02/21 00:23:38.064##_##FAIL:L1##_##customertest.exe:8168##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-
2017/02/21 00:23:38.108##_##FAIL:L1##_##customertest.exe:8168##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-
2017/02/21 00:23:38.134##_##FAIL:L1##_##customertest.exe:8168##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-
2017/02/21 00:23:38.198##_##FAIL:L1##_##customertest.exe:8168##_##BFMonitorHelpers:GetMonitorPreferredMode_Win7##_##GUIThread:Main##_##Failed to call DisplayConfigGetDeviceInfo. [HR: 87]##_##-

Feb 21, 2017 (modified Mar 1, 2017) • #23

Thanks! You mentioned you turn one of the TVs off when you switch from desk to ceiling. I think what might be happening is that if you saved the profile when one of the TVs was on, then you turn that TV off, and turn on the other TV, and try to load the profile, it has the wrong monitor info in the profile and this error shows up. Could you test that for me?

Mar 1, 2017 • #24

Faixa

21 discussion posts

That happens, indeed. But even without the ceiling tv profile it happens.

The 1 and 5 (Ceiling tv) are the same brand, so when i turn on one, the other turns off - this is by design. So this ceiling tv should be now the 1 monitor. The thing is, this is a FHD tv, and the one in my desk is 4k. I think this might be causing the problem along with what you said.

If that's the case, is there anything that can be done ?

Mar 6, 2017 • #25

That's probably what the issue is, yeah

I think you'll basically need 2 copies of each profile. One copy saved when the desk TV is on, and another copy saved when the ceiling TV is on. You'd then need to load the correct profile based on which TV is turned on.

Mar 7, 2017 • #26

Faixa

21 discussion posts

Isn't there a way to every time i start the program it restore the settings?

Mar 8, 2017 • #27

Not really, no

Mar 14, 2017 • #28

Faixa

21 discussion posts

Well gonna have to do it manually every time then.

Thanks for your help man !

Mar 16, 2017 • #29

No worries, sorry I couldn't offer a better solution!

Mar 16, 2017 • #30

Faixa

21 discussion posts

Hey man. I figured it out. Exchanged the top tv for a 4k and bought a splitter just like my old setup. Too bad it set me back 4000 jungies. (i'm from brazil) But now everything is peechy

Apr 16, 2017 • #31

Nice, glad to hear you got it sorted!

Apr 20, 2017 • #32

Was this helpful?

(-)
