Start Menu part under bezels in Eyefinity and many Win 10 features on right monitor only.

WARNING: You currently have Javascript disabled!
This website will not function correctly without Javascript enabled.

Mina Romany Azer63593

12 discussion posts

In DF 7.3.4 the Start Menu in Win 10 has a part hidden under bezel and I can't fix it as the previous version by enabling and disabling Taskbars many times.
I am running 6048x1080 with Bezel Compensation and adjusted offset for center primary monitor at the sides at 48 each.

There is also a big issue with Windows 10 and Eyefinity where notifications, calender, volume and other features only appear far on the right monitor and this needs to be addressed.

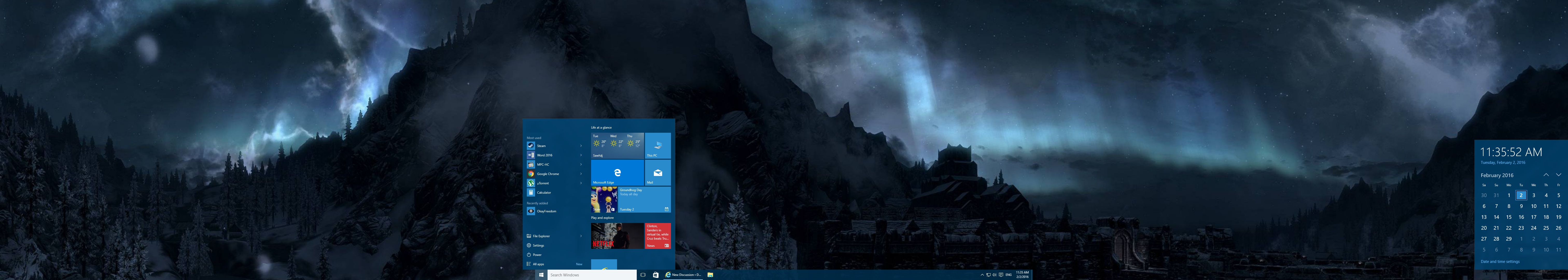

Attached is a picture of the problem.

• Attachment: C:\Users\High End\Desktop\DF.jpg [890,176 bytes]

$C:\Users\High End\Desktop\DF.jpg$

C:\Users\High End\Desktop\DF.jpg

Feb 2, 2016 • #1

We'll test this out here and see what we can do, thanks!

Feb 3, 2016 • #2

Mina Romany Azer63593

12 discussion posts

Quote:

We'll test this out here and see what we can do, thanks!

Thanks.

Feb 3, 2016 • #3

If you exit DisplayFusion, do these issues still occur? I was able to reproduce them even without DisplayFusion running.

Feb 23, 2016 • #4

Mina Romany Azer63593

12 discussion posts

Quote:

If you exit DisplayFusion, do these issues still occur? I was able to reproduce them even without DisplayFusion running.

If I exit DisplayFusion, the issue remains the same. But if I remove it completely the start menu appears in far left side of the left monitor.

Feb 23, 2016 • #5

Ok, thanks! Could you send me a copy of the Troubleshooting info from DisplayFusion? Here are the steps:

Open the Settings > Troubleshooting tab
Click the "Copy to Clipboard" button
Paste the text into a text file (please don't paste the text directly into your reply, the formatting gets garbled and makes it difficult to parse)
Reply with the file attached

Feb 24, 2016 • #6

Mina Romany Azer63593

12 discussion posts

Thanks for the reply.

Attached is the text file.

• Attachment: Document.rtf [95,132 bytes]

Feb 24, 2016 • #7

Thanks! DisplayFusion shouldn't be affecting the Start menu at all, because you have the Taskbars feature disabled, as well as the Taskbars checkbox in the Monitor Configuration window. I'm a bit stumped on this one. Would you be able to send a debug log when opening the Start menu with DisplayFusion running? Here are the steps:

On the Troubleshooting tab, change the Logging drop-down to "L1: Log Minimal"
Restart DisplayFusion
Reproduce the issue and note the time so we'll know where to check in the log file
Send us the DisplayFusion.log and DebugInfo.html files (can be found by clicking the Open Log button on the Troubleshooting tab)
Disable debug logging after sending the log

Thanks!

Feb 25, 2016 • #8

Mina Romany Azer63593

12 discussion posts

Quote:

On the Troubleshooting tab, change the Logging drop-down to "L1: Log Minimal"
Restart DisplayFusion
Reproduce the issue and note the time so we'll know where to check in the log file
Send us the DisplayFusion.log and DebugInfo.html files (can be found by clicking the Open Log button on the Troubleshooting tab)
Disable debug logging after sending the log

Thanks!

Attached are the log and debug files.

Time is 21:59:24 or 21:59:25

Best regards.

• Attachment [protected]: DisplayFusion.rar [21,403 bytes]

Feb 26, 2016 • #9

Thanks! If you disable the "Enable multi-monitor taskbars" checkbox on the Settings > Taskbar tab, does that make a difference?

Feb 29, 2016 • #10

Mina Romany Azer63593

12 discussion posts

Quote:

Thanks! If you disable the "Enable multi-monitor taskbars" checkbox on the Settings > Taskbar tab, does that make a difference?

That will make the Start Menu appears on far left side of the left monitor not the middle monitor of my Eyefinity setup.

Feb 29, 2016 • #11

Ok, that makes sense. Could you send me a screenshot of your Monitor Configuration > Splits and Padding window in DF?

Mar 4, 2016 • #12

Mina Romany Azer63593

12 discussion posts

Quote:

Ok, that makes sense. Could you send me a screenshot of your Monitor Configuration > Splits and Padding window in DF?

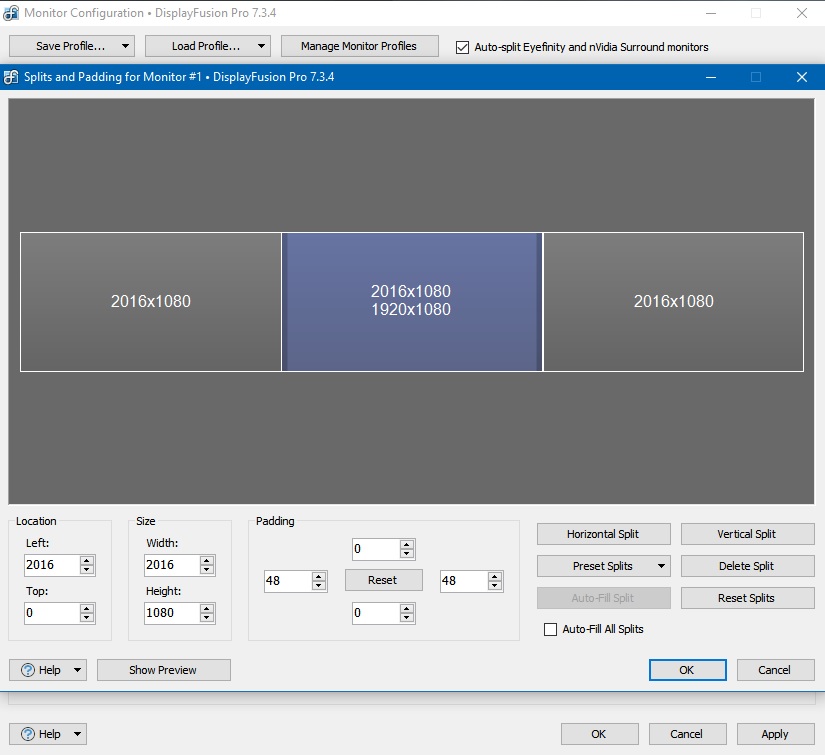

Attached is the screenshot.

Tha padding is for bezel compensation and even without it, the start menu problem still persists.

Thanks.

• Attachment: EF.jpg [99,480 bytes]


Mar 4, 2016 • #13

Ok, if you setup the splits like the how-to guide below (using the sizing options, instead of padding), does that make any difference?

https://www.displayfusion.com/KB/MonitorSplitsForBezelCorrection/

Mar 10, 2016 • #14

Mina Romany Azer63593

12 discussion posts

Quote:

Awesome! That fixed the issue and Start Menu now appears fine.

Thank you very much.

Is there anything I can do to make the calendar and action center (notifications center) appear on the middle monitor too?

I can make the calendar appear in the left of middle monitor but only if I activated Multi Monitor Taskbars but since I only want one taskbar in the middle monitor, activating auto-hide for right and left monitors work fine but for some reason the auto-hide option doesn't stick and every time the mouse pointer brings the taskbars on side monitors, I have to activate auto-hide again.

However this workaround doesn't work with action center (notifications center) as it always appears on the far right side of the right monitor.

Best regards.

Mar 10, 2016 • #15

The Notification Centre can't be moved, unfortunately

I will look into the Calendar/Volume/Network popups though to see what we can do.

Thanks!

Mar 11, 2016 • #16

Unfortunately at the moment it doesn't look like it's possible to move those pop-ups. If we're able to in the future, we'll be sure to let you know!

Thanks!

Apr 6, 2016 • #17
