Window Position Profiles allow you to save your current window layout and easily restore it at a later time, (e.g. after reboots, or undocking/redocking). This guide will walk you through multiple methods for saving and loading Window Position Profiles.
To save a Window Position Profile, begin by arranging application windows across your screens. Size and position them how you like, then perform one of the following methods:

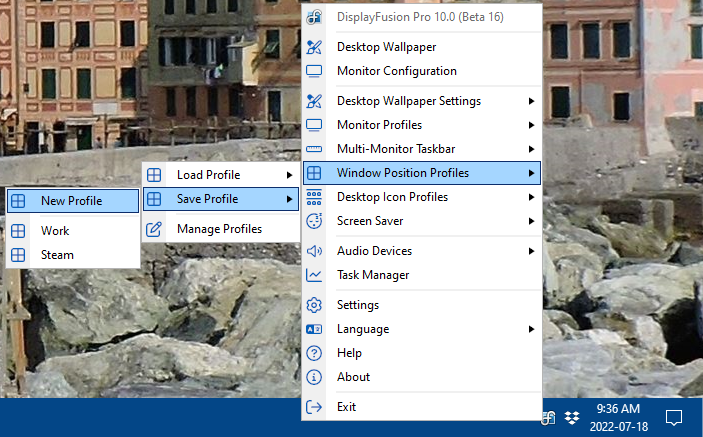

Right-click the DisplayFusion tray icon, navigate to "Window Position Profiles," and select "Save Profile," then "New Profile."
Save New Profile
Name your profile and click "OK."
Profile Name

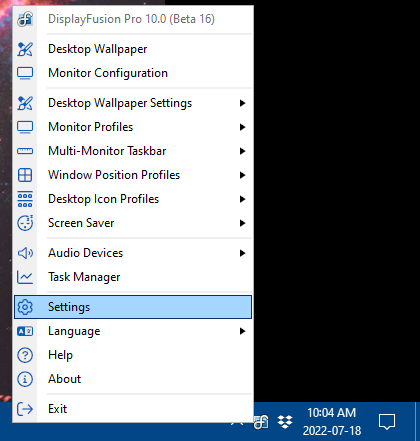

Right-click the DisplayFusion tray icon and select "Settings."
Settings

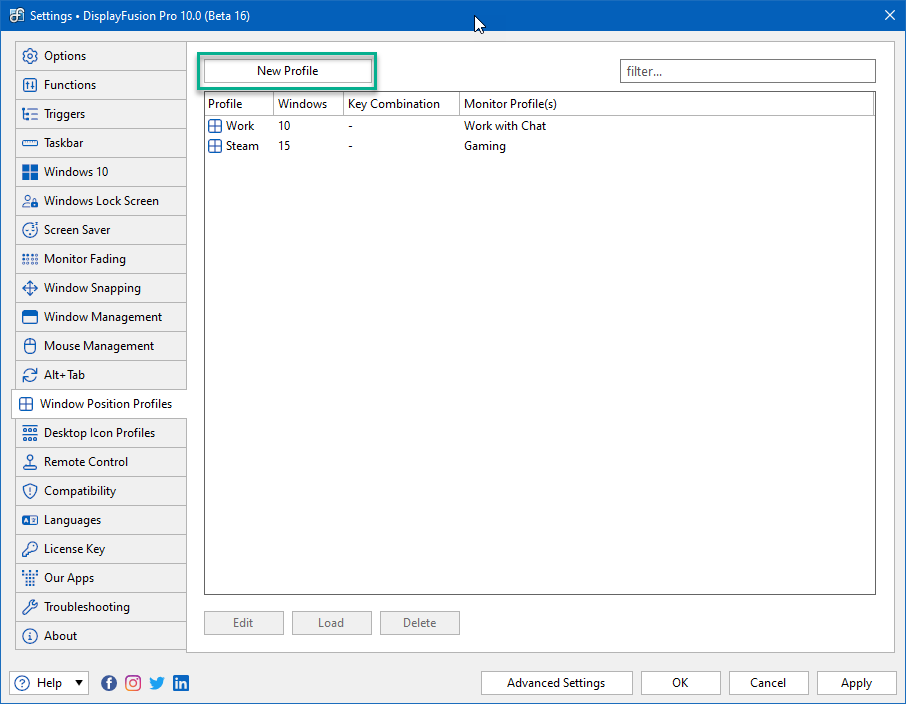

Click the "Window Position Profiles" tab and click "New Profile."
Window Position Profile Tab

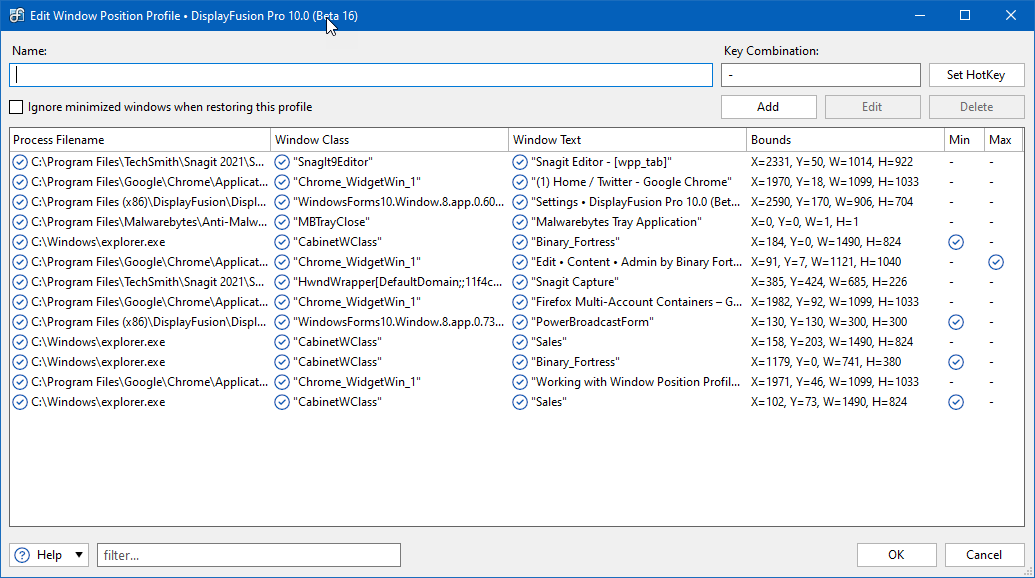

Name your profile and click "OK." (Other options include setting a HotKey, ignoring minimized windows when restoring the profile, and adding/editing/deleting entries in the list of windows.)
New Profile
Use the same initial navigation paths to save over or edit existing profiles. Note that overwriting does not add programs to the profile, it completely replaces it with only the windows you have open at the time.
  1. Right-click the DisplayFusion tray icon, navigate to "Window Position Profiles," and select "Load Profile," then select a saved profile.
  2. Open the DisplayFusion "Settings," select the "Window Position Profiles" tab, select the desired profile from the list, and click the "Load" button.
  3. Set a HotKey and/or add a TitleBar Button for the profile and load using either method (See Functions for more detail).
  4. Set a HotKey via the "Window Position Profiles" tab by editing the profile and assigning the key combination, the load using that HotKey.
  5. Load From Tray Icon
    1. Load From Tray Icon

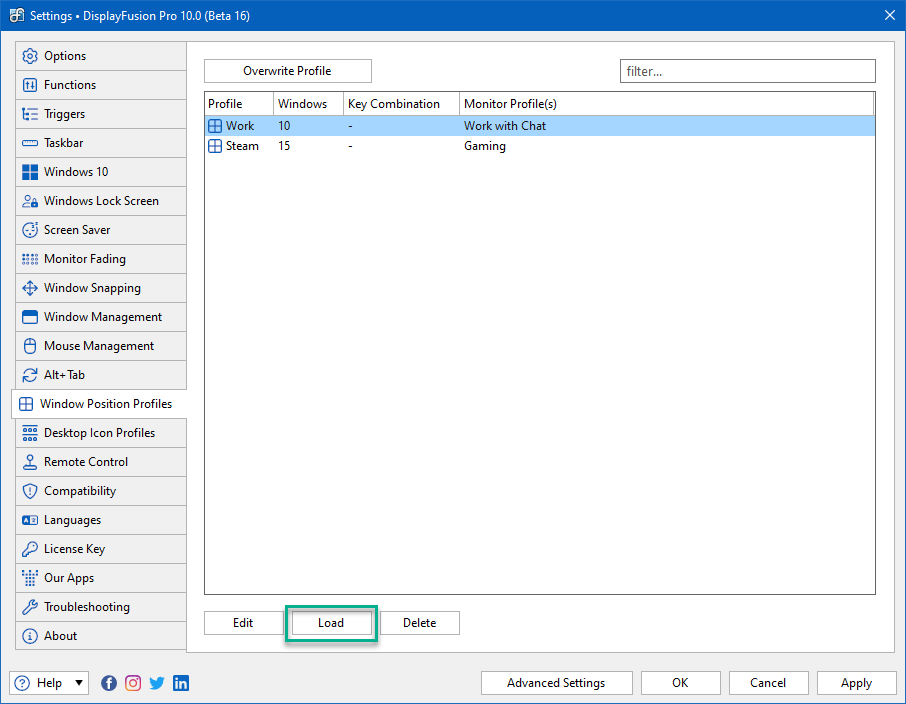

    Load from WPP Tab
    2. Load From WPP Tab

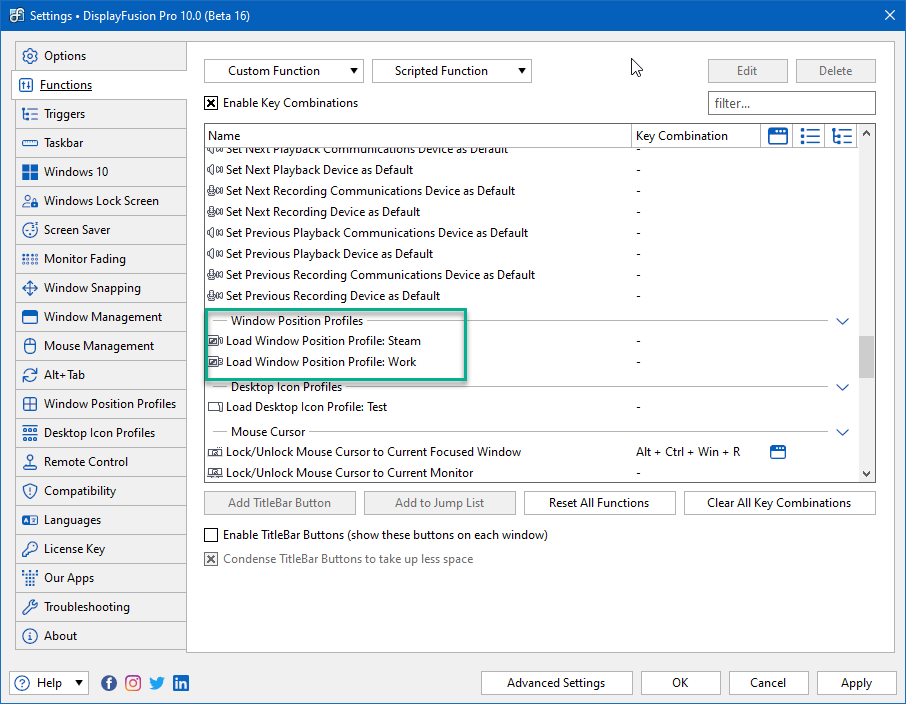

    Load from Function
    3. Load From Function

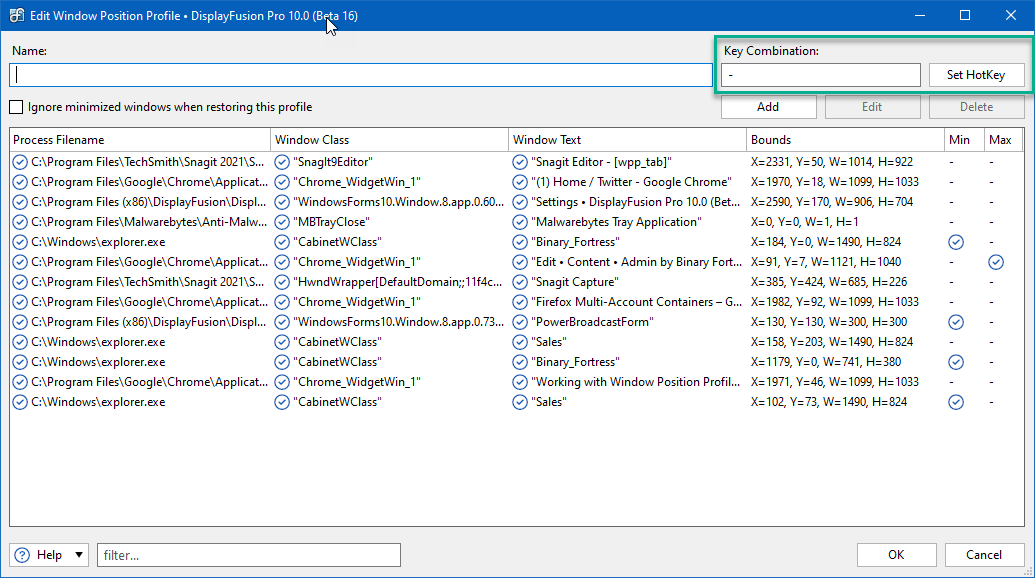

    Load from HotKey
    4. Load From HotKey
  6. Load via the command line with
    DisplayFusionCommand.exe -WindowPositionProfileLoad "profile name"
    (See Command Line Tool for more detail).
  1. Assign a Window Position Profile to a Monitor Profile via the "Manage Monitor Profiles" button in the "Monitor Configuration" window by selecting/creating the Monitor Profile from the list, selecting the Window Position Profile from the dropdown, and clicking "Close," then "OK."
    The profiles will then be linked; each time the selected Monitor Profile is loaded, its Window Position Profile will be loaded as well. Note there is a delay of 15-20 seconds after a Monitor Profile loads before the window positions are loaded.

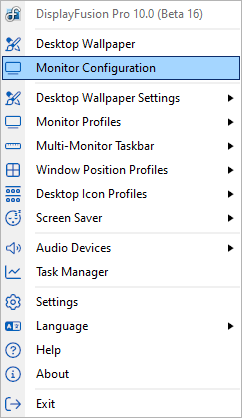

  2. Monitor Configuration

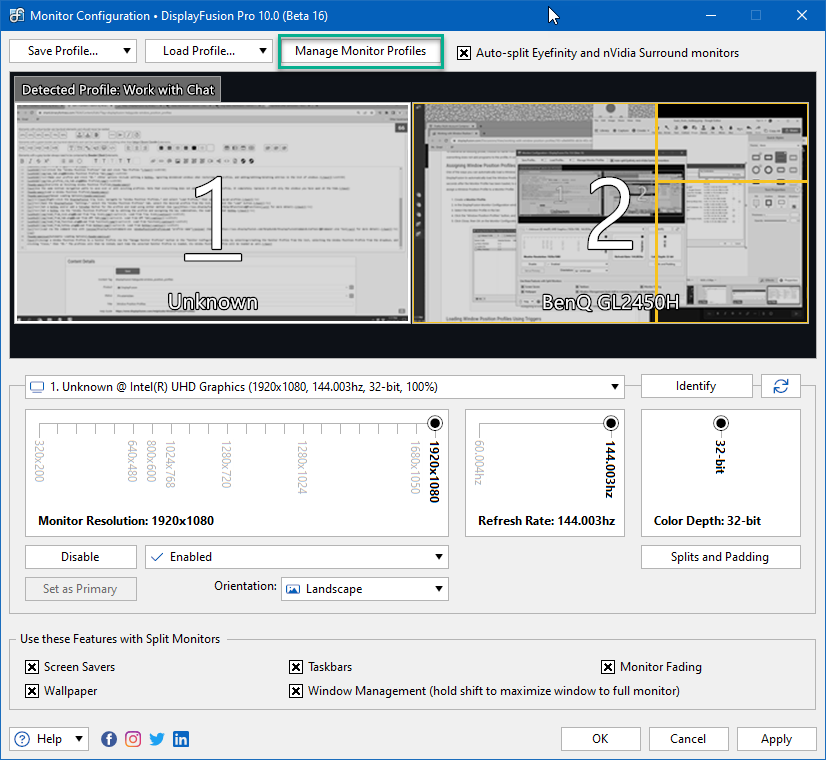

    Manage Monitor Profiles

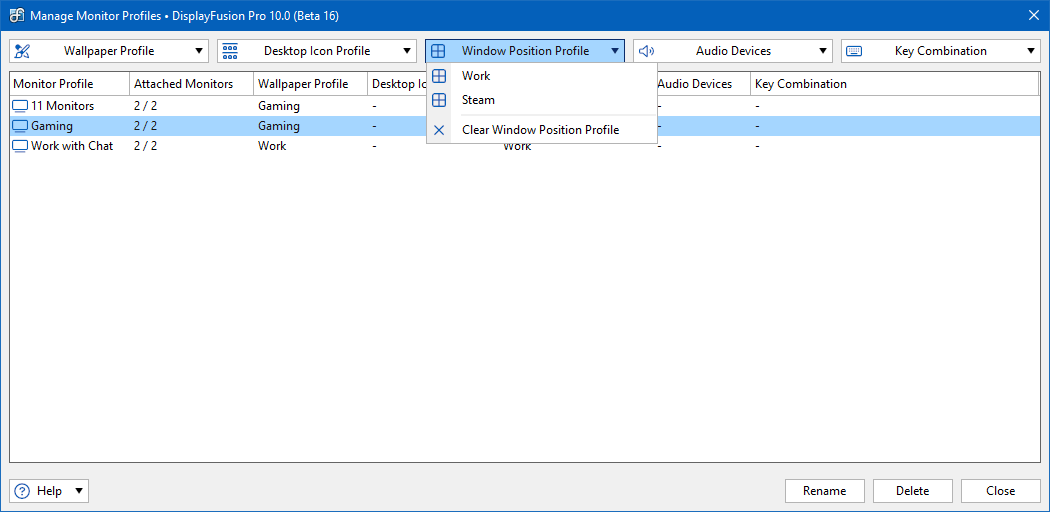

    Window Position Profile Selection

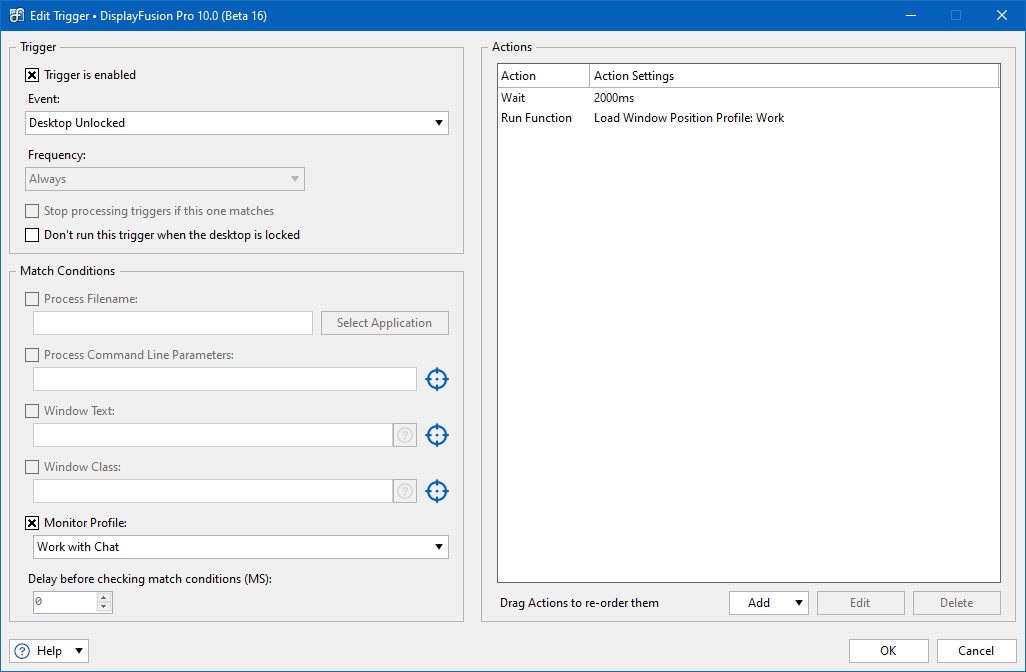

  3. Create a Trigger to load a Window Position Profile when a specific Event is carried out. (See Triggers for more detail).
    Trigger
  1. Right-click the DisplayFusion tray icon, choose Settings.
  2. Click the Window Position Profiles tab.
  3. Select the profile to edit and click the Edit button.
  4. In the "Edit Window Position Profile" window, you can click Add to add a new entry, or select an existing entry and click Edit or Delete.
  • If a window has a window title that changes often (e.g. a web browser where the title is the page you're currently on), you can edit the "Window Text" condition for that entry and remove all except the name of the program. Using Google Chrome as an example, you'd remove all but "Google Chrome" from the Window Text condition.
  • If two entries have identical "Process Filename," "Window Class," and "Window Text" conditions, both entries will match any window with those values. There isn't anyway around this, as those are the only conditions that can be used to identify an open window.
  • Window Position Profiles don't launch the applications, they only move windows that are already open before the profile was loaded. If you'd like to launch and position applications on startup, please see the Launching and Positioning an Application on Startup guide.
