steveculshaw
14 discussion posts
Is there anyway to have four full vertical, 25% width windows on a single monitor?
With my old monitor, I had three ...
left, centre and right, each 33% width
But now got a nice new monitor with increased resolution, so I'd like to have four, each at 25% ...
left, centre left, centre right and right
But I can't see anything that'll do this in the window alignment options
You could do this with Monitor Splitting, or by creating Custom Functions.
Monitor Splitting:
- Open the DisplayFusion Monitor Configuration window
- Click the Splits and Padding button
- Click the Preset Splits button and choose 4x1
- Click OK, and OK again
- Now you can maximize windows into each split, and if you want a window to span the whole monitor, hold Shift while clicking Maximize
Custom Functions:
- Open the Settings > Functions tab
- Click Add Custom
- Configure the first one like the attached "Custom Function 1" screenshot
- Repeat steps 1-3 for the other 3 Custom Functions (note that your X values may be different than mine, depending on the screen resolution)
Hope that helps!

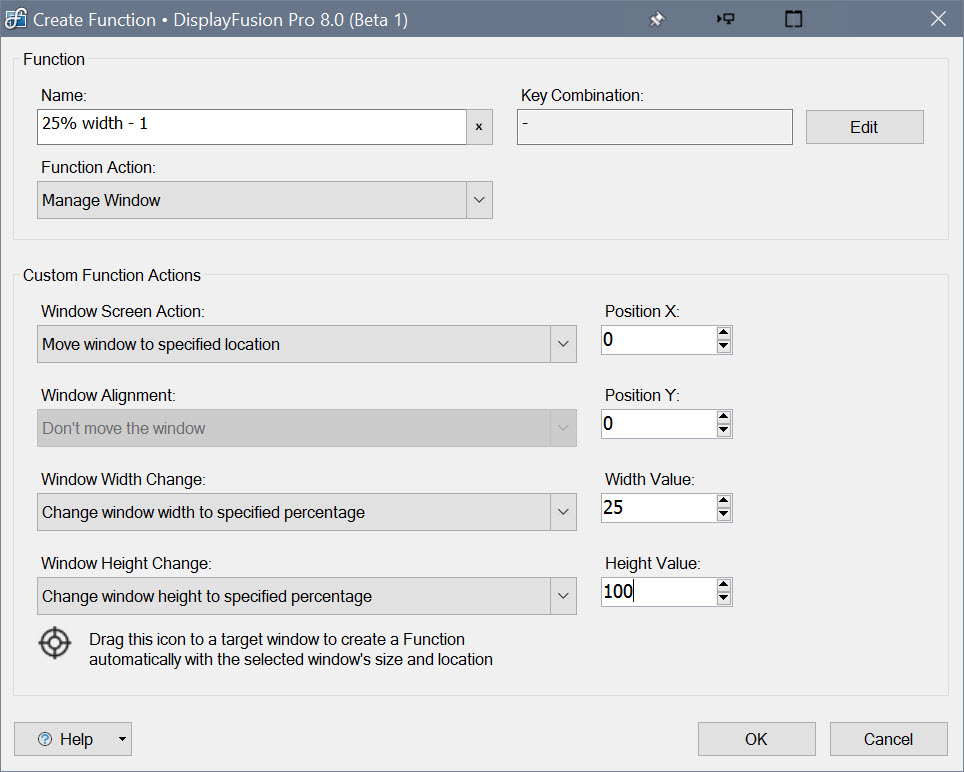

Custom Function 1.jpg

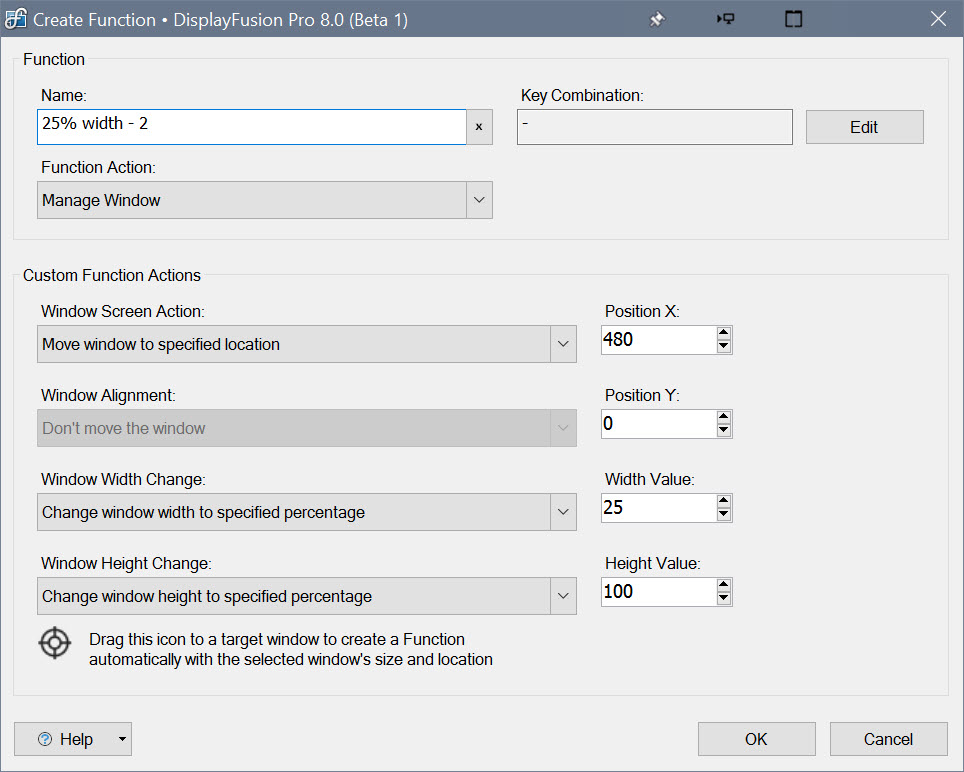

Custom Function 2.jpg
Custom Function 3.jpg
Custom Function 4.jpg
Dec 7, 2015 (modified Dec 7, 2015)
•
#2
Was this helpful?
(-)
(-)
